How to Design Modular Machine Guarding for Future Expansion

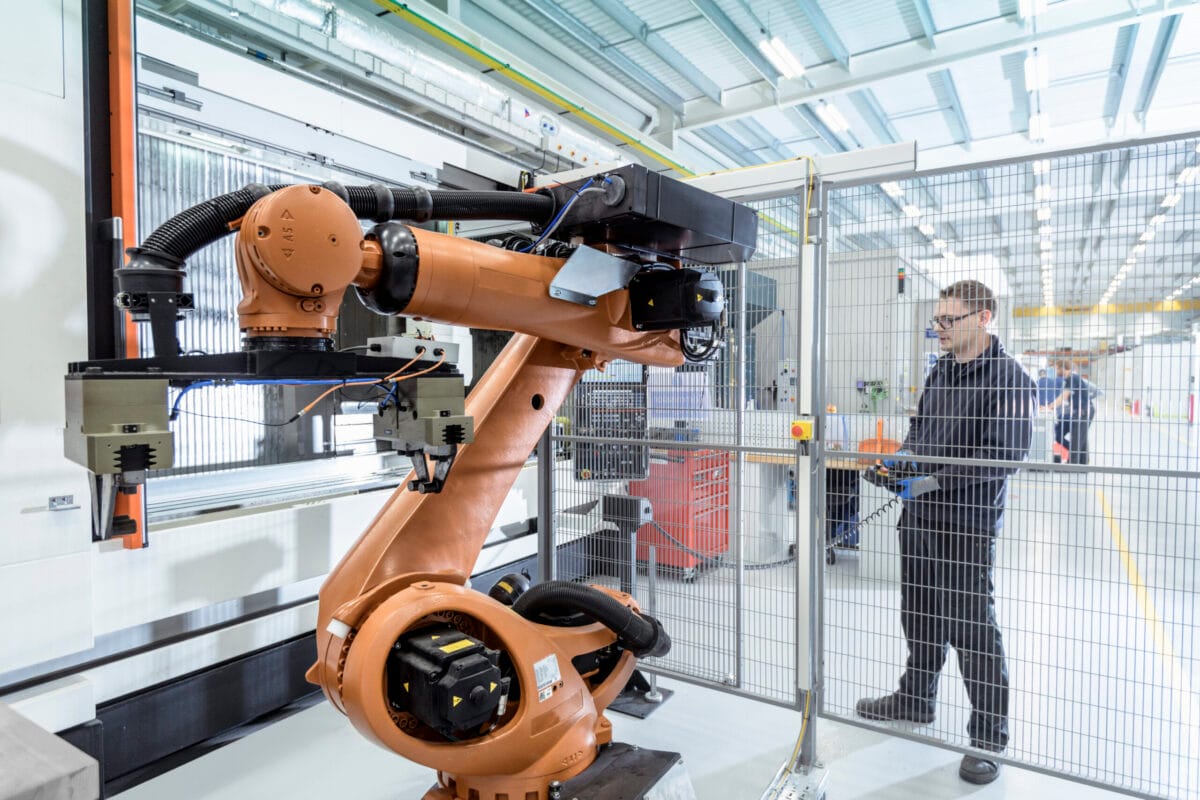

A modular machine guarding layout should protect the current machine hazards while allowing for likely future changes to conveyors, robotic cells, palletizers, access routes and production equipment.

Future expansion is one of the main reasons businesses choose modular guarding. Standardized panels, posts, gates and brackets can make it easier to extend a perimeter, relocate an access point or replace a damaged section. However, modular components do not make future modifications automatically safe.

Every extension, new opening or relocated gate can change safety distances, create reach paths or alter access to hazardous movement. The original guarding layout should therefore be designed with expansion in mind, and each later change should be reviewed before installation.

Why Plan for Expansion at the Guarding Design Stage?

Production areas rarely remain unchanged. A line may later require:

• an additional conveyor
• a robotic loading station
• a larger palletizer
• new product-transfer openings
• altered pallet dimensions
• additional maintenance access
• changed pedestrian or forklift routes
• new AGV or AMR operating areas
• a revised cleaning or material-flow process

Without planning, these changes can lead to improvised cut-outs, removed panels, poorly located gates or gaps around new equipment.

A modular guarding system can reduce the need to replace an entire enclosure when a line changes. The important condition is that the original layout allows for controlled expansion without compromising the safeguarding function.

Start With the Current Hazard Assessment

Future expansion should never take priority over the hazards that exist today.

The initial design should identify:

• hazardous machine movement and danger zones
• required safety distances
• reach-through, reach-under, reach-over and reach-around access paths
• access required for operation, cleaning and maintenance
• conveyor and pallet-transfer interfaces
• gate locations and interlock requirements
• vehicle routes and impact exposure
• walls, columns, services and other site constraints

The current enclosure must provide the intended protective function in its installed condition. Do not leave a large unused opening, removable panel or uncontrolled gap simply because equipment may be added later.

Where future expansion is likely, the better approach is to identify a controlled extension point that can be modified later through an approved layout review.

Allow for Planned Extension Points

A future extension point is a section of the guarding perimeter that can be removed or reconfigured when the line changes.

This may include:

• a defined panel-and-post extension point
• a fixed panel section identified for controlled future replacement
• reserved floor space beside the enclosure
• a planned conveyor or material-transfer interface
• a gate location that can later be reconfigured following review

The extension point should still maintain the current guarding function. Fixed sections should be secured using the intended fixing method so they cannot be easily removed, displaced or bypassed during normal operation. Where removal is intended for maintenance or future modification, the required tools and approved procedure should be specified.

Document the intended expansion area on the guarding drawing. This helps ensure that future contractors, maintenance teams and project managers understand which sections can be changed and what review is required before doing so.

Select Components That Support Reconfiguration

Not every modular guarding component is interchangeable. Future flexibility depends on selecting a system with compatible panels, posts, gates, brackets and fixings.

Consider:

• standard panel heights and widths
• post spacing and base-plate arrangements
• mesh aperture or solid-panel options
• gate types and sizes
• removable panel configurations
• brackets and joining methods
• infill-panel options for irregular spaces
• replacement panel availability
• corrosion, washdown or impact requirements
• compatibility with interlock mounting arrangements

Where possible, use a repeatable system across related areas of the site. This can simplify spare-parts management, extensions and replacement work.

However, standard panel dimensions should not drive the safeguarding layout. If a standard panel creates an unsuitable gap, poor gate position or inadequate safety distance, use a different configuration or purpose-designed section.

Plan Future Conveyors and Transfer Openings

Conveyor extensions and pallet-transfer openings are common reasons guarding layouts need to change.

Before adding a future opening, assess:

• product, tote or pallet dimensions
• load overhang and movement path
• the nearest hazard behind or beside the opening
• possible reach-through, reach-around and reach-under access
• likelihood of jams or manual intervention
• access from pedestrian and vehicle routes
• whether tunnel guarding or shaped infill is needed
• whether a safety-rated protective device or controlled muting arrangement is required

A future conveyor opening should not be created by simply removing panels. The opening must allow material flow while preventing people from reaching or entering a hazardous area.

If the future process is not yet confirmed, leave sufficient space outside the current guarding perimeter rather than building an uncontrolled opening into the enclosure.

Design Gates for Changing Access Needs

Future line changes can alter where people need access for cleaning, maintenance, fault recovery or component replacement.

A gate that is suitable today may become impractical after a conveyor, robot or pallet station is added. When planning the layout, consider:

• likely maintenance points
• possible component-removal paths
• access for carts, lifting equipment or replacement tooling
• future pedestrian routes
• gate swing clearance
• sliding-gate travel space
• gate exposure to forklifts, AGVs, AMRs or pallet traffic
• future interlock and guard-locking requirements

Where opening a gate could expose personnel to hazardous machine functions, an interlocked movable guard is commonly used as part of the wider machine safety system.

If future changes affect stopping performance, hazard location, access time or the access route, the interlock and any guard-locking arrangement may need reassessment.

Protect Space for Safety Distance and Vehicle Clearance

Expansion often reduces available floor space. New equipment may be positioned closer to an existing guard line, reducing safety distance or creating a climbing point beside the enclosure.

Review future changes against:

• guard-to-hazard distance
• mesh opening size
• floor clearance beneath panels
• reach-over access from nearby pallets, platforms or machine frames
• gaps around new conveyors or services
• forklift and pallet clearance
• AGV and AMR travel paths
• impact exposure at posts, gates and corners
• emergency access and pedestrian routes

Do not assume an existing enclosure remains suitable because the panels have not moved. A new machine, conveyor or pallet stack may change how a person can approach the guarded area.

Control Changes Through Drawings and Approval

A modular guarding system should have an approved layout drawing that identifies:

• panel and post locations
• gate types and access points
• safety distances
• controlled gaps and transfer openings
• interlock and safety-device interfaces
• extension areas and known future allowances
• fixing details and site constraints

When the line changes, compare the proposed modification with the approved layout and risk assessment.

Review whether the change affects:

• hazard coverage
• access paths
• safety distance
• gate position or operation
• interlock alignment or safety function
• material-transfer openings
• vehicle impact exposure
• maintenance and cleaning access

A change that appears minor, such as moving a post or enlarging a conveyor opening, can create a new route to a danger zone.

Commission Every Expansion or Reconfiguration

After extending or modifying modular machine guarding, inspect the completed installation before normal operation resumes.

Check:

• panels, posts and brackets are secure
• replacement and extension sections match the approved design
• gaps and safety distances remain controlled
• gates align, latch and operate correctly
• interlocks and guard locking work as intended, where used
• transfer openings do not allow unsafe access
• vehicle routes do not expose the new guarding to foreseeable impact
• maintenance access remains practical
• drawings, maintenance records and safety documentation are updated

Where the modification affects an interlocked gate, safety device or machine control, test the relevant safety function before returning the equipment to production.

Common Expansion Mistakes

Common mistakes include:

• leaving unused openings in the original enclosure
• removing panels for new conveyors without reviewing reach paths
• adding equipment inside the existing guard perimeter without checking safety distance
• relocating gates without considering maintenance tasks
• using standard panel sizes to determine a new opening
• failing to protect new posts from pallet or vehicle impact
• adding AGV or AMR routes, pallet interfaces or low-level transfer openings beside the guard line without reviewing vehicle clearance, reach-under access and possible impact exposure
• changing interlock mounting arrangements without testing the safety function
• treating modular components as interchangeable without checking the original design

A modular system can simplify expansion, but only when each change is treated as a safeguarding modification rather than a fencing adjustment.

Conclusion

Designing modular machine guarding for future expansion means protecting the current machine hazards while creating a controlled path for later changes.

The most effective approach is to establish a safe current layout, document potential extension points and review every added panel, conveyor opening, gate or access route against the machine risk assessment.

Modular guarding can support staged production upgrades, new automation and changing material flow. It does not remove the need for safety distances, controlled access, suitable interlocks and proper commissioning after each change.

If you are planning a production-line upgrade or expect future automation changes, include the guarding layout, expansion assumptions and access requirements in the project scope early. A competent guarding supplier or machinery safety specialist can help develop a layout that works now and remains practical as the site evolves.

Frequently Asked Questions

Can modular machine guarding be extended later?

Often, yes. Modular systems can support added panels, posts, gates and reconfigured perimeters. Every change should still be reviewed to confirm that hazard coverage, safety distance and access control remain suitable.

Should future conveyor openings be included in the first guarding layout?

Only where the opening can remain safely controlled in the current layout. If the future process is uncertain, it is usually better to reserve space outside the enclosure and add the opening after the material flow and hazards are confirmed.

Can a modular access gate be moved when a line changes?

Often, yes. Moving a gate can change access routes, controlled gaps, interlock alignment and maintenance arrangements, so the guarding layout and relevant safety function should be reviewed first.

Does adding equipment inside an existing enclosure require a risk review?

Yes. Additional machinery, conveyors, robots or pallet systems can change danger-zone locations, safety distances, stopping performance and access paths.

Are modular guarding panels interchangeable?

Not always. Panels may differ in height, mesh opening size, finish, strength, fixing arrangement or intended location. Replacement and extension components should match the approved guarding design.

What should be checked after a guarding expansion?

Check panel and post alignment, gaps, safety distances, transfer openings, gate operation, interlocks, vehicle clearance, maintenance access and updated drawings before normal production resumes.
