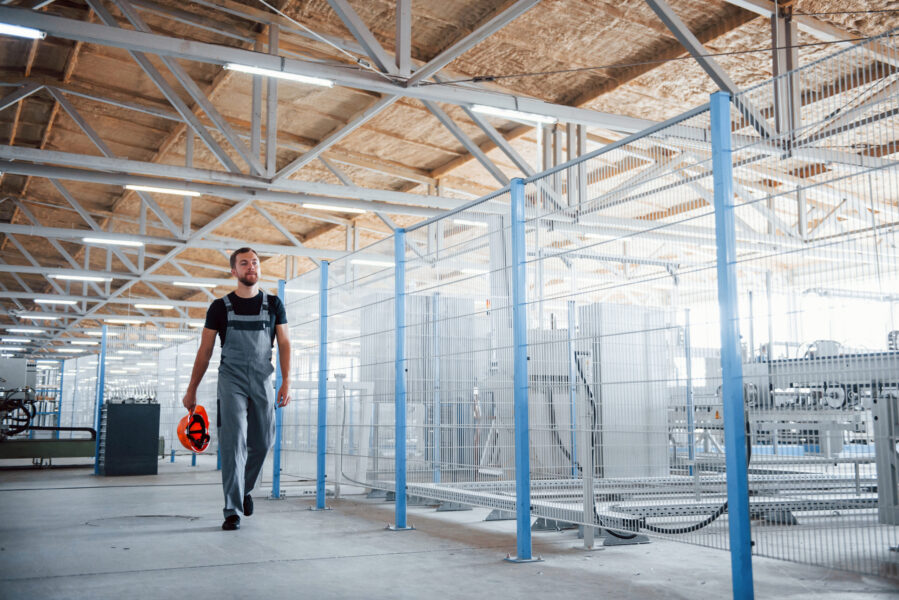

Installing modular machine guarding correctly means more than assembling panels, posts and gates around a machine. The completed system must control access to hazardous areas, maintain required safety distances, support safe operation and maintenance, and integrate correctly with any associated safety controls.

A modular guarding system can simplify installation and future changes, but standardized components do not remove the need for machine-specific layout review. Panel positions, floor clearances, gate locations, transfer openings and interfaces with existing equipment all need to match the approved guarding design.

The installation should begin only after the machine hazards, access requirements, risk controls and scope of mechanical and electrical work have been confirmed.

Confirm the Approved Guarding Layout

Before drilling anchors or unpacking panels, confirm that the installation drawings reflect the actual site.

Check:

• machine location, footprint and operating envelope
• hazard locations and required guard perimeter
• safety distances from panels and openings to danger zones
• panel heights, mesh apertures and floor clearances
• gate positions, opening directions and access routes
• conveyor infeed, discharge and transfer openings
• walls, columns, services and overhead obstructions
• pedestrian routes, forklift traffic and emergency access arrangements
• interlock locations and electrical scope

Do not assume that standard panel widths will fit the site without adjustment. A modular layout may need purpose-designed infill sections, altered post positions or different gate locations to avoid unsafe gaps.

Changes made during installation should be referred to the responsible designer, engineer or machinery safety specialist. Improvised layout changes can reduce safety distance, create reach-around access or make maintenance tasks impractical.

Isolate the Machinery Before Installation

Machinery should be shut down and isolated before installation begins. Follow the site’s lockout and isolation procedure and confirm that electrical, pneumatic, hydraulic, mechanical and gravitational energy sources have been controlled.

Do not rely on an emergency stop as the means of isolation. An emergency stop can initiate a stop function, but it does not necessarily isolate energy sources or prevent unexpected movement during installation work.

Where guarding is being installed around existing equipment, also consider:

• suspended loads or elevated tooling
• stored pressure in pneumatic or hydraulic systems
• conveyor belt tension
• gravity movement
• robot or actuator movement
• electrical cabinets and live services

Installation personnel should not work within a machine danger zone until the site isolation process has been completed and verified.

Set Out the Modular Guard Perimeter

Set out the complete perimeter before fixing posts to the floor. This allows the installation team to verify the overall arrangement and identify problems before holes are drilled or panels are cut.

Confirm that:

• the guard line matches the approved layout
• required clearance from hazardous movement is maintained
• gates can open fully without striking nearby equipment
• access points support the intended tasks
• there are no uncontrolled gaps at walls, columns or machine frames
• panel ends do not allow reach-around access
• transfer openings remain controlled
• the enclosure does not obstruct walkways, exits or service access

Particular attention is needed at corners, conveyor penetrations, machine interfaces and the ends of guard runs. These are common locations for gaps that allow a person to reach through, around, under or over the guarding.

Install Posts, Panels and Fixings

Posts should be installed plumb, aligned and securely anchored to a suitable substrate. Panels should fit correctly between posts without excessive gaps, distortion or sharp edges.

Check:

• anchors and fixing methods are suitable for the substrate, guarding system and expected loading
• base plates sit correctly on the slab
• posts are aligned with the intended panel spacing
• panels are fitted in the correct orientation
• joining brackets and fasteners are complete and tightened
• cut or modified sections are properly finished
• sharp edges are removed or protected
• panels cannot be readily displaced or removed

Fixed guards should be secured so they are not easily removed or defeated. Where removal is intended for maintenance, the fixing method should require the intended tools and should not allow easy or unintended removal. Where practicable, retained fastenings should be used so the fixings remain with the guard or machinery when the guard is removed. Fixed guards should also be designed so they cannot remain properly in place without their intended fixings.

The guarding structure also needs adequate strength for foreseeable use. This includes expected vibration, contact, cleaning activity and any credible impact exposure. Guards and protective devices should be robust, securely held in place and located at an adequate distance from the danger zone.

Control Gaps, Openings and Interfaces

A modular guard installation is only as effective as its weakest interface. A secure mesh panel does not control risk if a person can access the danger zone through a nearby gap.

Inspect:

• floor gaps below panels
• panel joints and corners
• spaces beside machine frames
• wall and column interfaces
• conveyor openings
• product transfer points
• cable, pipe and service penetrations
• removable panel joints
• gaps around gates and latching points

Opening size and guard-to-hazard distance must be assessed together. If a standard modular panel creates an unsuitable opening or positions mesh too close to hazardous movement, use an appropriate design change rather than accepting the gap.

Where ejected parts, falling material, process debris, swarf, sparks or broken tooling are foreseeable, the guarding arrangement should be assessed for suitable containment and resistance to expected impact. Mesh fencing alone may not provide adequate protection in every application. The solution may require solid guarding, purpose-designed containment or a combination of local custom guards and modular perimeter fencing.

Install Gates and Access Points Properly

Access gates should be selected and installed around the actual work task. A gate that is too narrow, poorly located or difficult to operate is more likely to encourage unsafe workarounds.

Verify that:

• the gate opens in the intended direction
• hinges, tracks and guides are securely fitted
• the gate does not sag or bind
• latches align correctly
• gate movement does not create a pinch, trapping or collision hazard
• personnel cannot become trapped inside the enclosure
• access is sufficient for cleaning, maintenance and component removal
• internal release or escape arrangements are considered where full-body entry is possible

Where access is infrequent, fixed panels or tool-removable guards may be appropriate. Where regular access could expose personnel to hazardous machine functions, a movable guard with suitable interlocking is commonly used as part of the wider machine safety system. The final safeguarding approach should be determined through risk assessment and applicable local requirements.

Integrate and Test Interlocks

A modular gate with an interlock device is not automatically a safe interlocked guard. The gate, device, safety circuit, stopping performance and reset arrangement need to work as one safety function.

Confirm that:

• opening the gate initiates the required safe response
• hazardous functions cannot start while the guard is open
• closing the gate alone does not cause hazardous restart
• reset controls are located appropriately
• devices are protected from impact and misalignment
• wiring is mechanically protected
• interlocks cannot be easily bypassed
• guard locking is considered where a person could reach the danger zone before hazardous movement or another machine-related risk has ceased

Interlocking movable guards should prevent hazardous functions from starting while the guard is open and provide a stop command when the guard is no longer closed. Where a person could reach the danger zone before the risk has ceased, guard locking may be required in addition to interlocking.

Commission the Completed Installation

Before returning the machine to service, complete a documented inspection and functional test.

Verify:

• all specified panels, posts, gates and fixings are installed
• safety distances match the approved design
• no uncontrolled gaps remain
• posts, anchors and brackets are secure
• gates align, latch and operate correctly
• fixed guards cannot be easily removed
• interlocks and guard locking operate as intended
• stop and restart behavior is correct
• emergency stop devices remain accessible
• maintenance tasks can be completed without defeating the guarding
• drawings and documentation reflect the installed layout

Functional testing should include normal operation, gate opening, attempted restart and foreseeable misuse scenarios. If the machine layout, access task or control system differs from the approved design, resolve the issue before returning the equipment to production.

Common Modular Guarding Installation Mistakes

Common installation mistakes include:

• positioning panels to suit standard widths rather than hazard locations
• leaving gaps below panels or around machine interfaces
• installing gates where they obstruct the actual maintenance task
• placing mesh too close to dangerous movement
• using unsuitable anchors or incomplete fixings
• fitting interlocks without validating the complete safety function
• allowing gate sag or misalignment to affect interlock operation
• changing the layout during installation without review
• treating the completed enclosure as safe because every panel is present

Conclusion

Correct installation of modular machine guarding starts with the approved hazard-control layout, not the available panel sizes. The key requirements are controlled access, suitable safety distances, secure installation, practical maintenance access and proper integration with the machine safety system.

Modular panels, posts and gates can make installation and future expansion more manageable, but the final guarding arrangement must still suit the machine, the hazards and the way people work around it.

If you are planning a new enclosure, retrofit or line upgrade, confirm the machine layout, hazard information, access tasks and interlock scope before installation begins. A competent guarding supplier or machinery safety specialist can help review the design and resolve site-specific issues before commissioning.

Frequently Asked Questions

Can modular machine guarding be installed around existing equipment?

Yes. Modular guarding is commonly used for retrofits, provided the layout is designed around existing hazards, machine interfaces, access requirements and site conditions.

Do modular guard panels need to be fixed to the floor?

Many perimeter guarding systems use floor-mounted posts and anchors, but the fixing arrangement depends on the system design, machine layout, substrate and required structural performance.

Can modular guarding be modified during installation?

Only after the effect on hazard coverage, safety distance, access and control-system operation has been reviewed. A small field change can create an unsafe gap or access path.

Do all modular access gates need interlocks?

Not necessarily. Interlocking is commonly used where opening the gate could expose a person to hazardous machine functions. The required safeguard depends on the risk assessment and access requirements.

Can a modular mesh guard contain ejected material?

Not always. Mesh may be suitable for access control, but applications involving ejected parts, swarf, sparks, broken tooling or process material may require solid or purpose-designed containment.

How should fixed modular panels be secured?

Fixed panels should be installed using the intended fixings so they cannot be easily removed, displaced or defeated. Where removal is intended for maintenance, the intended tools should be required.

What should be checked before commissioning modular guarding?

Check the perimeter layout, safety distances, gaps, anchors, gate operation, interlocks, restart behavior, emergency access, maintenance access and final documentation.
