Machine Guarding Solutions for Automated Packaging Lines

Automated packaging lines can combine conveyors, cartoners, case packers, flow wrappers, labelers, palletizers, robots and material-handling systems within a small production area. The right machine guarding solution must control access to hazardous movement while allowing product flow, operator interaction, cleaning, changeovers and maintenance.

A fixed mesh guard may be suitable around an infrequently accessed drive system, while a cartoner or robotic packing cell may need interlocked access gates, safety-rated controls and defined loading openings. The correct arrangement depends on the machine hazards, the frequency of access and how quickly the equipment reaches a safe state after a stop command.

For many packaging facilities, modular machine guarding provides a practical way to create perimeter enclosures, controlled access points and future expansion capacity. However, panels and gates must be designed around the machine risk, not simply fitted around the available floor space.

Common Hazards on Automated Packaging Lines

Packaging equipment can create a wide range of mechanical hazards.

Common examples include:

• in-running nip points at conveyor rollers, belts and chains
• crushing and shearing at cartoners, case packers and palletizers
• trapping at moving guards, pushers, actuators and transfer mechanisms
• entanglement with shafts, couplings, chains and drive components
• cutting hazards from knives, blades and film-trimming equipment
• impact from robotic arms, end effectors and moving loads
• falling cartons, pallets or unstable product
• access to hazardous movement during jam clearing or changeovers
• unexpected restart after cleaning, maintenance or fault recovery

The hazard may not be limited to the main packaging machine. Conveyors, accumulation tables, pallet transfer systems, stretch wrappers, labelers and robotic loading stations can all introduce additional risk.

A complete safeguarding review should therefore assess the full line, including machine interfaces and access between adjacent equipment.

Start With the Packaging Process

Guarding should reflect how the packaging line operates in practice.

Review:

• product infeed and discharge routes
• carton, case, tray or pallet flow
• operator stations
• manual loading or unloading points
• film, label or consumable changes
• product changeovers
• jam-clearing tasks
• cleaning and washdown requirements
• maintenance access
• tool-change and setup requirements
• fault recovery and reset locations
• forklift, pallet-jack, AGV or AMR traffic near the line

A guard that supports normal production but makes common interventions impractical is likely to be bypassed. Safe access for cleaning, changeovers and fault recovery should be planned during the design stage.

Use Fixed Guards for Infrequently Accessed Hazards

Fixed guards are often a strong option where access to the hazard is not required during normal use.

Typical packaging-line applications include:

• motor and coupling guards
• belt and chain-drive covers
• conveyor pulley guards
• fixed panels around low-access mechanisms
• covers over accessible rotating components
• guards around machine sides or rear areas only accessed during planned maintenance

Fixed guards should prevent or adequately restrict access to the hazard and should not be easily removed, displaced or bypassed. Where removal is intended for maintenance, the fixing method should require the intended tools and allow the guard to be properly refitted.

For local hazards such as drives, shafts, couplings and pulleys, close-fitting fixed guards may be more appropriate than perimeter fencing.

Use Interlocked Access Where Regular Entry Is Needed

Packaging machinery often requires routine access for jam clearing, product changeovers, cleaning and maintenance. In these areas, removable panels may be impractical.

Interlocked movable guards may be suitable where opening the guard could expose a person to hazardous machine functions. The required access arrangement should be determined through risk assessment, stopping performance and applicable local requirements.

Typical applications include:

• access doors on cartoners and case packers
• gates around robotic packing cells
• maintenance access to palletizers and stretch wrappers
• enclosed conveyor zones with regular fault-recovery access
• operator access points near automated loading stations

An interlocked gate is not simply a gate with a switch. The complete safety function may need to address:

• the safe response when access is opened
• machine stopping performance
• prevention of hazardous start or restart while the gate is open
• reset location and visibility
• resistance to foreseeable bypassing
• safety-related control-system design
• guard locking where needed

If a person could reach the danger zone before hazardous movement or another machine-related risk has ceased, guard locking, increased separation distance or another suitable protective measure may be required. The decision should consider the relationship between stopping time and access time.

Design Conveyor and Product Transfer Openings Carefully

Packaging lines often need openings for cartons, cases, film, trays, pallets and product to move between machines. These openings can also become access paths to hazardous areas.

Assess:

• product dimensions and possible variations
• conveyor width and guide arrangement
• the nearest hazardous movement
• possible reach-through, reach-around and reach-under paths
• whether a person could lean, crawl or step through the opening
• jam-clearing requirements
• access from pedestrian or vehicle routes
• pallet overhang and load stability

A transfer opening should allow the intended product flow while preventing people from reaching or entering the guarded area.

Possible solutions may include:

• tunnel guards
• shaped infill panels
• reduced-size openings
• close-fitting local guards
• fixed barriers around transfer interfaces
• safety-rated protective devices at defined loading points
• controlled muting arrangements
• interlocked maintenance access near likely fault points

A light curtain or safety-rated scanner at one loading point does not protect side, rear or reach-under access paths that remain open.

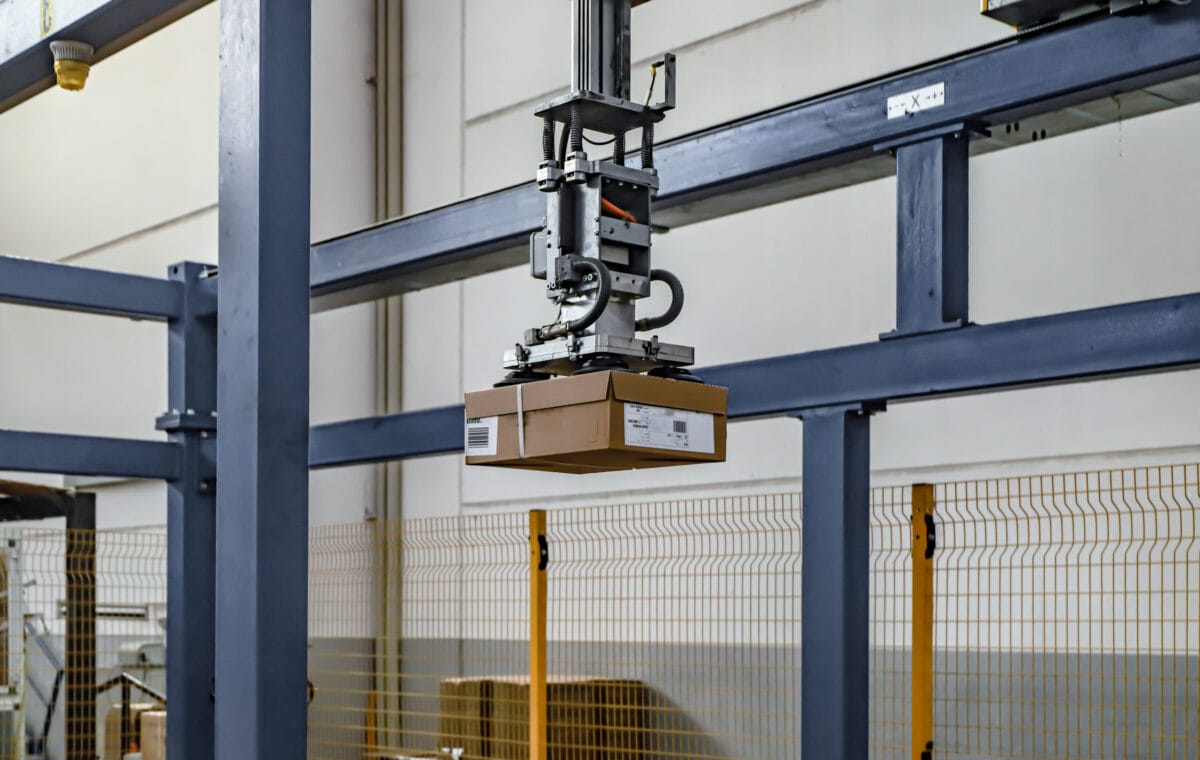

Modular Guarding for Packaging Cells

Modular machine guarding is widely used around packaging lines because it can combine fixed panels, access gates, conveyor openings and infill sections within one consistent layout.

It is particularly useful for:

• robotic case-packing cells
• palletizing and depalletizing areas
• conveyor-fed cartoning systems
• automated stretch wrappers
• end-of-line automation
• integrated packaging and material-handling systems

Benefits may include more efficient installation planning, standardized components, easier replacement of damaged sections and future extension where the line changes.

However, modular guarding should not be selected from panel dimensions alone. Panel heights, mesh openings, post locations, floor clearance, gate positions and transfer interfaces must all be assessed against the actual hazards and access requirements.

In many projects, the best result is a combined solution: close-fitting custom or local guards at accessible machine hazards, with modular perimeter guarding around the wider automated area.

Consider Cleaning, Hygiene and Changeovers

Packaging lines in food, beverage, pharmaceutical and personal-care environments may require regular cleaning and frequent product changeovers.

Guarding should account for:

• washdown exposure
• cleaning chemicals
• residue buildup around panels and brackets
• access for sanitation teams
• removable components and product-contact areas
• hygienic materials and finishes
• inspection behind or beneath panels
• practical access for film, labels, cartons and tooling changes

A guard that must be removed repeatedly for routine sanitation or changeovers should be reviewed. A properly positioned interlocked gate, removable section or redesigned access arrangement may provide a safer and more efficient solution.

Protect Guarding From Traffic and Impact

Packaging lines are often located near pallet staging, forklift routes, pallet jacks and mobile automation.

Consider:

• vehicle clearance from posts and gates
• pallet overhang
• loading-zone access
• protection for interlocks and control stations
• impact barriers or bollards where appropriate
• pedestrian routes near the guarded area
• visibility at crossings and corners

Standard machine guarding should not be assumed to withstand vehicle impact unless it has been specifically designed for that exposure. A damaged post or gate can create gaps, reduce safety distance or affect interlock alignment.

Common Packaging-Line Guarding Mistakes

Common problems include:

• guarding the main machine but not connected conveyors or transfer points
• using removable panels where operators need regular access
• locating gates too far from common jam-clearing points
• leaving product openings large enough for uncontrolled access
• fitting light curtains without controlling access from other directions
• placing mesh too close to accessible moving components
• ignoring cleaning and changeover requirements
• failing to protect guarding from forklift or pallet impact
• modifying the line without reviewing the safeguarding layout
• treating emergency-stop devices as a substitute for guarding

A packaging line should be assessed as one connected system. Guarding that works at one machine but creates an access gap at the next machine does not provide effective risk control.

Relevant Standards and Technical Considerations

Packaging-line safeguarding should be based on risk assessment and the applicable project requirements.

Common international standards may include:

• ISO 12100 for machinery risk assessment and risk reduction
• ISO 14120 for the design and construction of guards
• ISO 14119 for interlocking devices associated with guards
• ISO 13857 for safety distances
• ISO 13855 where protective-device positioning depends on approach speed and stopping time
• ISO 13849-1 for safety-related parts of control systems
• ISO 14118 for prevention of unexpected start-up
• ISO 11161 for safety of integrated manufacturing systems, where applicable

In Australia, the AS 4024 Safety of Machinery series addresses machinery safety topics including guarding, safety distances, interlocking and safety-related control systems. In the United States, applicable OSHA machine-guarding and hazardous-energy-control requirements should also be reviewed. Local regulations and industry-specific requirements remain relevant for the installation location.

Conclusion

Machine guarding solutions for automated packaging lines should control access to hazardous movement without making cleaning, changeovers, product flow and maintenance impractical.

The most effective systems combine local fixed guards, modular perimeter guarding, controlled transfer openings, interlocked access gates and safety-related controls selected for the actual packaging process.

If you are planning a new packaging line, robotic packing cell or end-of-line upgrade, assess the full system before selecting panels or gates. A competent guarding supplier or machinery safety specialist can help develop a practical guarding layout that supports safe production and future changes.

Frequently Asked Questions

What hazards need guarding on packaging lines?

Common hazards include conveyor nip points, rotating drives, cutting blades, crushing zones, robotic movement, palletizer mechanisms, stretch-wrapper arms, transfer points and unexpected restart during maintenance or jam clearing.

Can modular guarding be used around packaging machinery?

Yes. Modular guarding is commonly used around robotic cells, palletizers, conveyors, cartoners, stretch wrappers and end-of-line equipment. It must still be designed around the actual hazards, access tasks and safety distances.

Do packaging machine access doors need interlocks?

Where opening the door could expose a person to hazardous machine functions, an interlocked movable guard is commonly used. The required arrangement depends on the risk assessment, stopping performance and access requirements.

How should conveyor transfer openings be guarded?

Transfer openings should allow product, cartons, cases or pallets to move through while preventing people from reaching or entering the hazardous area. Opening size, hazard location, reach paths and possible jam-clearing tasks should be assessed together.

Can light curtains replace packaging machine guards?

Not always. Light curtains may be suitable at defined loading or access points, but they do not protect other access routes around, under or beside the protective field.

What should be considered for washdown packaging lines?

Consider materials, cleaning chemicals, drainage, mesh cleanability, panel joints, access for sanitation teams, corrosion resistance and whether guards can be cleaned and inspected effectively.

Does an emergency stop replace machine guarding?

No. Emergency stop devices are complementary protective measures. They do not prevent access to hazardous machine movement or replace energy isolation during maintenance.
