How to Design Machine Guarding Around Existing Plant Constraints

Designing machine guarding around existing plant constraints requires more than measuring the available floor space and fitting panels where they will physically fit. The guarding layout must still control access to hazardous movement, maintain applicable safety distances where distance is used as a protective measure, and support the way the machine is operated, cleaned and maintained.

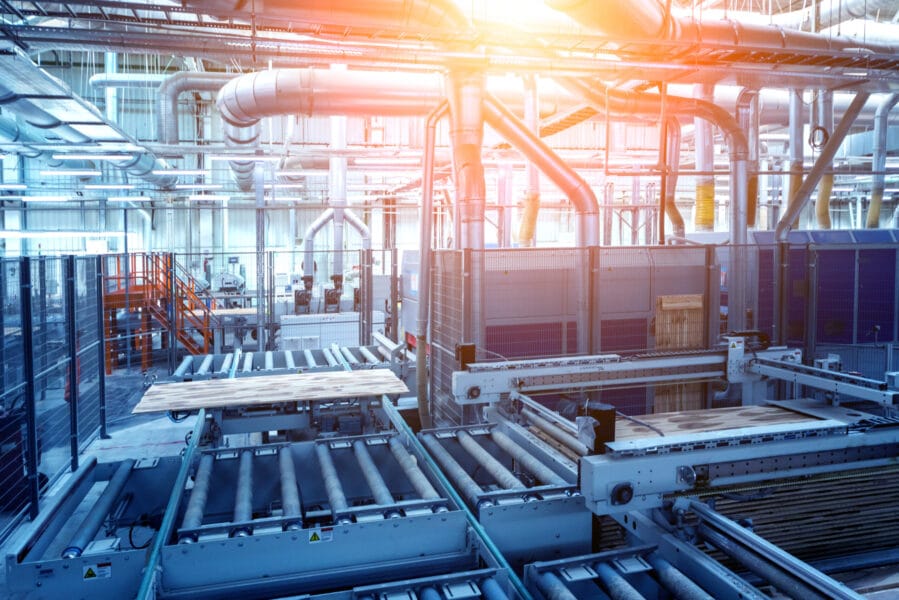

Existing facilities often include columns, walls, pits, uneven floors, conveyors, pipework, cable trays, pedestrian routes and adjacent machinery. These constraints can create gaps, restrict gate movement or force guarding closer to the danger zone than intended.

A modular machine guarding system can help manage many retrofit conditions because panels, posts, gates and infill sections can be configured around the available layout. However, standard panel sizes should not dictate the safeguarding design. The final arrangement must follow the actual hazards, access requirements and site conditions.

Start With the Machine Hazard and Existing Layout

Before designing the guarding perimeter, identify the machine hazards and map the physical constraints around them.

Review:

• hazardous moving parts and danger zones
• machine operating envelope
• robot movement, end effectors and carried loads
• conveyor drives, rollers, transfer points and underside hazards
• palletizer, turntable, press or packaging-machine movement
• existing guards, doors and safety devices
• walls, columns, pits and building structures
• pipework, cable trays, services and electrical cabinets
• floor levels, drainage channels and slab condition
• pedestrian, forklift, AGV and pallet routes
• nearby machinery and shared transfer systems

The guard perimeter should be measured from the actual danger zone, not simply from the outside of the machine frame. A machine may have moving parts, carried loads or transfer equipment that extend beyond its visible footprint.

Do Not Let Available Space Determine Safety Distance

A common retrofit mistake is placing guarding as close as possible to the machine because of limited floor space.

This can create several problems:

• mesh panels positioned too close to hazardous movement
• insufficient distance between the guard opening and the danger zone
• inadequate room for gate operation
• restricted maintenance access
• reach-through or reach-around gaps
• guard lines that obstruct walkways or material flow
• difficulty removing components during maintenance

Safety distance depends on the hazard location, opening size and possible reach direction. Where an interlocked gate, protective device or other safety function is relied on to stop hazardous movement before access is possible, the relationship between stopping time and access time must also be assessed.

If the available space does not allow a suitable perimeter position, the solution may require a different guarding layout, a reduced opening size, close-fitting local guards, controlled access or changes to the machine arrangement.

Do not accept an unsafe setback simply because the existing plant layout is difficult.

Manage Walls, Columns and Building Interfaces

Walls and columns can make a guard perimeter difficult to close properly. They can also create hidden reach-around gaps where a person can access the machine from the side of the enclosure.

Check:

• gaps between guard panels and walls
• spaces around structural columns
• openings above, below or beside building interfaces
• access behind conveyors or machine frames
• wall-mounted services that interrupt the guard line
• whether walls themselves provide suitable separation and containment
• potential climbing points near the perimeter

A wall should not be assumed to function as machine guarding without considering the hazard, possible access route, structural suitability and condition of the interface. The transition between the wall and the modular guarding system must prevent uncontrolled access.

Modular infill panels, purpose-designed brackets or altered post locations may be needed where standard panel widths do not close the interface safely.

Design Around Conveyors, Chutes and Material Flow

Conveyors, chutes and transfer systems are among the most common plant constraints because they often pass through or beside a guarded area.

The design should assess:

• conveyor infeed and discharge points
• pallet and product transfer openings
• conveyor frames and support legs
• accessible drives, pulleys and rollers
• return-roller and underside hazards
• gaps around chutes or guide rails
• possible reach-through, reach-under and reach-around access
• jam-clearing and cleaning requirements
• expansion allowances for future conveyor changes

A material opening should allow the intended product or pallet to pass while preventing people from reaching or entering the hazardous area.

Where a standard modular panel creates an unsuitable opening around a conveyor, use a purpose-designed infill section, tunnel guard, close-fitting local guard or alternative perimeter arrangement. Do not leave a gap because it is difficult to close with standard components.

Plan Gates Around Real Access Requirements

Existing plant constraints often limit where gates can be placed. A column, conveyor, aisle or machine frame may prevent a gate from opening in the preferred direction.

Before selecting a gate location, identify:

• cleaning and maintenance tasks
• tool-change and component-removal requirements
• likely jam-clearing locations
• space for personnel, carts and lifting equipment
• pedestrian and vehicle routes
• swing clearance for hinged gates
• travel space for sliding gates
• emergency access arrangements
• possible trapped-person risks where full-body entry is allowed

A gate should be located near the task it supports. If operators need to walk around the enclosure, climb over panels or reach through openings to perform routine work, the access strategy needs revision.

Where opening the gate could expose personnel to hazardous machine functions, an interlocked movable guard is commonly used as part of the wider machine safety system. If a person could reach the danger zone before hazardous movement or another machine-related risk has ceased, guard locking, increased separation distance or another suitable protective measure may be required. The appropriate measure should be determined by the risk assessment and the relationship between stopping time and access time.

Account for Floors, Pits and Uneven Surfaces

Existing floors can create practical and safety-related installation problems.

Review:

• floor levels and slope
• drainage channels
• pits and trenches
• expansion joints
• damaged concrete
• post-tensioned slabs or concealed services
• anchor locations
• floor clearances beneath panels
• gaps created by changes in elevation

A panel installed across an uneven floor may create an excessive gap beneath the guard. That gap can allow reach-under access or reduce the effectiveness of the perimeter.

The solution may involve adjusted panel heights, infill sections, suitable base details or changes to the guard line. Any modification must maintain the intended safety distance and avoid creating an opening that allows access to hazardous movement.

Posts, anchors and base plates must also be suitable for the actual substrate and expected loading. Guarding should not be anchored into a slab without confirming its condition, thickness where relevant, concealed services and any restrictions on drilling.

Protect Guarding From Vehicle and Equipment Traffic

In existing plants, the preferred guard line may run close to forklifts, pallet jacks, AGVs, AMRs or moving loads.

Consider:

• vehicle routes and turning areas
• pallet overhang
• loading and unloading zones
• clearance from posts and gates
• impact exposure at corners and transfer points
• protection for interlocks and control stations
• visibility at crossings and blind spots

A vehicle impact can bend a post, distort a panel, create a gap or misalign an interlocked gate. Where impact is foreseeable, provide suitable separation, impact protection or revised traffic routes.

The required safety distance should remain effective under foreseeable guard deflection. Where vehicle impact is foreseeable, the guarding arrangement, impact protection and traffic separation should be assessed so an impact is not likely to compromise hazard coverage, gate alignment or access control. A guard line positioned too close to the hazard may become ineffective if a post or panel moves under impact.

Use Modular Guarding Without Forcing the Layout

Modular machine guarding is often well suited to retrofit projects because standard panels, posts and gates can be adapted around existing plant constraints.

Practical advantages may include:

• adjustable guard runs around repeated machine sections
• easier addition of infill or extension panels
• consistent gates and hardware across a site
• replacement of damaged sections
• staged installation during shutdown windows
• future reconfiguration after production changes

However, modular guarding should not be treated as a universal solution. Some locations may require custom fabricated sections, close-fitting guards or modified machine interfaces.

A combined approach is often appropriate: modular perimeter fencing around the wider machine area, with custom guards around irregular equipment, transfer points or local hazards.

Commission the Retrofit Layout

Before returning equipment to service, confirm that the installed guarding matches the approved design and remains suitable for the actual plant conditions.

Check:

• safety distances and controlled gaps
• panel, post and gate alignment
• wall, column and machine interfaces
• conveyor and transfer openings
• floor clearances
• anchor and fixing integrity
• practical maintenance access
• pedestrian and vehicle clearances
• interlock and guard-locking operation, where used
• stop and restart behavior
• final drawings and maintenance documentation

If the final installation differs from the original layout because of an unexpected site constraint, review the change before the machine returns to production.

Conclusion

Designing machine guarding around existing plant constraints means balancing the realities of a working facility with the need to control access to hazardous machine movement.

Columns, conveyors, uneven floors, services, vehicle routes and limited space can complicate a guarding retrofit. They do not remove the need for suitable safety distances, controlled access and practical maintenance arrangements.

Modular machine guarding can provide a flexible basis for retrofit projects, but the layout must be designed around the hazard rather than the available panel size. Where standard components cannot achieve the required result, custom sections or changes to the guarding strategy may be needed.

If you are planning a guarding upgrade in an existing facility, provide drawings, photographs, key dimensions and details of access tasks early. A competent guarding supplier or machinery safety specialist can help identify the constraints and develop a practical layout before installation begins.

Frequently Asked Questions

Can modular machine guarding be installed around existing machinery?

Yes. Modular guarding is commonly used for retrofit projects because panels, posts and gates can be configured around existing equipment, conveyors and building constraints. The layout still needs to be based on the actual hazards and access requirements.

What if a column or wall creates a gap in the guarding?

The interface should be designed to prevent uncontrolled access. This may require an infill panel, altered post position, purpose-designed bracket or a different guard arrangement.

Can guarding be installed on uneven floors?

Yes, but uneven floors, pits and level changes can create gaps beneath panels or affect post alignment. The guard line and base details should be designed to maintain controlled openings and required safety distances.

What should be considered around conveyor openings?

Consider the product or pallet size, nearest hazard, possible reach paths, jam-clearing tasks, guard-to-hazard distance and whether people could reach or enter through the opening.

Can a gate be moved to avoid an existing obstruction?

Often, but moving a gate changes the guarding layout and access route. The effect on safety distances, maintenance access, interlocking and machine controls should be reviewed before the change is made.

Do retrofit guards need protection from forklifts?

Where forklifts, pallet jacks, AGVs, AMRs or moving loads could strike the guarding, suitable separation, impact protection or traffic controls should be considered.

When is custom guarding needed instead of modular panels?

Custom guarding may be needed where machine geometry is irregular, local hazards need close-fitting covers, transfer openings require a specialized shape or standard modular components cannot maintain the required safety distance or access control.
