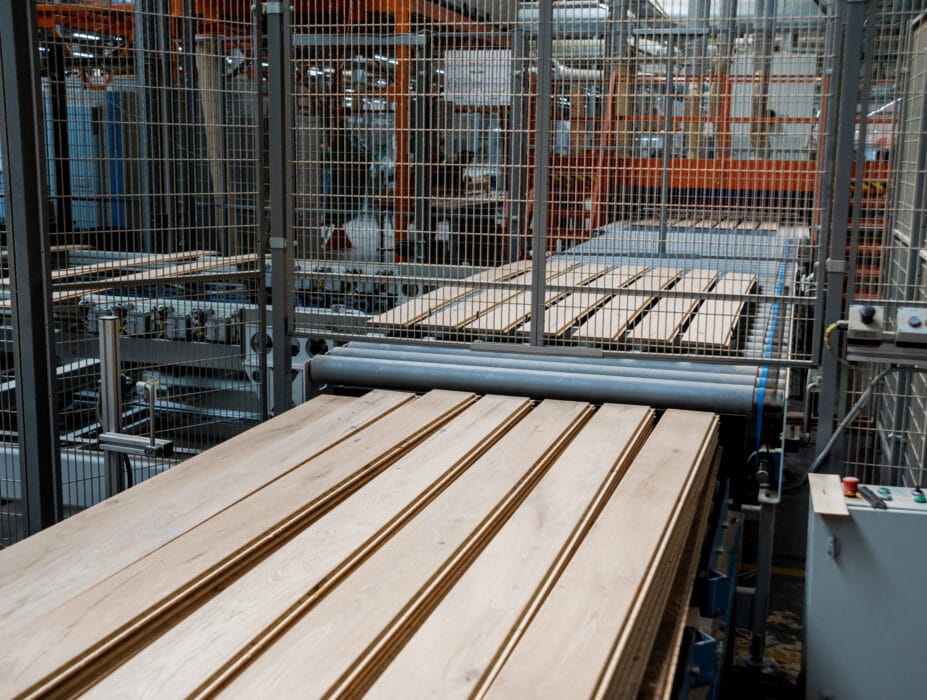

Designing modular guarding around conveyors and transfer openings starts with the hazard, not the available panel size.

Conveyor systems often need openings for product flow, pallet movement, loading, discharge, inspection and maintenance. These openings can also create access paths to nip points, rollers, drives, transfer zones and automated equipment. A modular guarding layout must therefore allow the process to operate while preventing people from reaching or entering hazardous areas.

Modular machine guarding can provide a practical perimeter around conveyor lines, pallet transfer systems and automated cells. However, standardized panels, posts and gates still need to be positioned around the actual danger zones, required safety distances and access tasks.

Identify Hazards Around the Conveyor System

Conveyor hazards are not limited to the belt surface. Risk may arise at points where belts, rollers, chains, pulleys or conveyed materials interact with fixed structures or other machinery.

Common hazards include:

• in-running nip points at pulleys and rollers
• drawing-in points between belts, chains or moving components
• rotating drive shafts, couplings and sprockets
• crushing at transfer points or moving pallet systems
• shearing at moving interfaces
• falling or ejected product
• entanglement with exposed rotating parts
• unexpected start-up during cleaning, maintenance or jam clearing
• access into automated equipment through conveyor openings

The guarding design should identify the actual danger zone, not simply the outer frame of the conveyor. A panel positioned outside the conveyor may still allow reach-through access to rollers, pulleys or moving components if the opening size and setback distance are not suitable.

Start With Product Flow and Access Requirements

Before defining the guard perimeter, map how products, pallets, containers and people move through the area.

Consider:

• infeed and discharge directions
• conveyor transfer points
• pallet-entry and pallet-exit openings
• manual loading or unloading stations
• robot loading zones
• accumulation areas
• cleaning requirements
• jam-clearing locations
• maintenance access
• inspection and adjustment points
• forklift and pedestrian routes

A product opening should not become an informal personnel access route. If workers regularly reach through a transfer point to clear jams, reset sensors or retrieve fallen materials, the guarding layout needs review.

The safest design is one that supports necessary material flow while making access to hazardous movement difficult or impossible during normal operation.

Establish the Modular Guard Perimeter

A modular guarding perimeter should enclose the complete hazardous area, including conveyor drives, transfer zones and any connected automated equipment.

The layout should:

• maintain suitable separation from the danger zone
• control access around the sides and ends of the conveyor
• avoid uncontrolled gaps at walls, columns and machine frames
• include appropriate access points for planned tasks
• account for pallet, product and container movement
• avoid obstructing required pedestrian routes or emergency access
• allow practical visibility where operators need to observe the process
• accommodate future extensions without creating new reach paths

Modular panels and posts can make it easier to create consistent guard runs around repeated conveyor sections. However, the guard line should follow the risk assessment, not the most convenient panel arrangement.

Where a standard panel width creates an unsuitable opening at a transfer point, guard end or wall interface, the layout should be adjusted or a purpose-designed section introduced.

Design Transfer Openings Carefully

Transfer openings are one of the most important design points in conveyor guarding. They are necessary for material movement but can create reach-through, reach-around or, where dimensions permit, whole-body access to a hazardous area.

Assess:

• the size of the product or pallet being transferred
• the direction and speed of movement
• the location of the nearest hazard
• the possible reach path through or around the opening
• whether a person could reach, lean, crawl, step or otherwise enter through or around the opening
• whether an item can become jammed or misaligned
• whether the opening is accessible from a pedestrian route
• whether the opening needs a controlled safety function

A conveyor opening designed for product or pallet flow may also allow access by a hand, arm, leg or, where dimensions permit, a person. The opening size, guard position and distance to the actual danger zone must be assessed together.

Where product flow cannot be controlled by a fixed opening alone, the solution may require tunnel guarding, close-fitting local guards, controlled access, presence sensing or another suitable safeguarding method.

Prevent Reach-Through and Reach-Around Access

A common design error is focusing on the main guard panel while overlooking the interfaces around it.

Check for:

• gaps beneath modular panels
• spaces around conveyor frames
• openings at panel ends
• corner gaps
• clearances beside transfer chutes
• access around walls, posts or structural columns
• spaces created by cable trays, pipework or services
• openings beside pallet transfer stations
• gaps between conveyors and adjacent machinery

The question is not simply whether the panel is secure. It is whether a person can reach the danger zone through, under, over or around the guarding.

On modular systems, panel joints, end sections and transfer interfaces need particular attention. A standard panel may fit mechanically but still leave a gap that creates an unsafe access path.

Select Access Gates for Real Tasks

Conveyor systems need more than a guarded perimeter. They also need practical access for cleaning, inspection, maintenance and fault recovery.

Identify:

• where jams are most likely to occur
• where belt tracking or tension adjustment is performed
• where product buildup is removed
• where maintenance staff need access to drives or rollers
• whether large components need to be removed
• how often personnel need to enter the guarded area

Where access is infrequent, fixed guarding or tool-removable sections may be appropriate. Where regular access could expose personnel to hazardous conveyor movement or other hazardous machine functions, an interlocked movable gate is commonly used as part of the wider machine safety system.

Gate position matters. A gate placed far from the likely intervention point may encourage workers to climb over guarding, reach through a transfer opening or remove panels.

Where hazardous movement does not stop before a person could reach the danger zone, guard locking or another suitable protective measure may be required based on the relationship between stopping time and access time.

Consider Conveyor Drives and Local Guarding

Modular perimeter fencing is often effective around larger conveyor zones and automated systems. It may not be sufficient on its own for every local hazard.

Close-fitting fixed guards may also be needed around:

• head and tail pulleys
• exposed drive belts and chains
• motor couplings
• sprockets and chain drives
• accessible rollers
• take-up mechanisms
• accessible return rollers and underside hazard points

In many installations, the strongest approach is a combined solution: local fixed guards at accessible mechanical hazards, plus modular perimeter guarding around areas where whole-body access must be controlled.

Integrate Guarding With Safety Controls

Transfer openings, access gates and conveyor zones should be considered alongside the machine safety controls.

The design may need to address:

• interlocked gates
• guard locking
• emergency stop devices
• pull-wire emergency stops along accessible conveyor routes
• reset controls
• prevention of unexpected restart
• light curtains or safety scanners at defined loading points
• muting arrangements where materials pass through a protective field
• safety-related control-system design and validation

Emergency stop devices are valuable complementary measures, but they do not prevent access to hazardous conveyor parts. They should not replace physical guarding or controlled access.

Similarly, a light curtain at a loading point does not protect a person who can reach around the field, underneath it or through an adjacent transfer opening.

Plan for Installation and Future Changes

Before installing modular conveyor guarding, confirm the actual site dimensions, floor condition, post locations, services and conveyor interfaces.

Check:

• slab condition and anchor suitability
• floor levels, pits and drainage channels
• columns, walls and overhead obstructions
• cable trays, pipework and electrical services
• forklift impact exposure
• conveyor expansion plans
• future pallet or product size changes
• access for installation and maintenance

Modular systems can support later reconfiguration, but any new opening, added conveyor section or relocated gate should be reviewed before it is installed. A small change can reduce safety distance or create a new route into the hazard zone.

Standards and Technical Considerations

Conveyor guarding should be designed through risk assessment and in accordance with applicable project and local requirements.

Common international standards relevant to the design may include:

• ISO 12100 for machinery risk assessment and risk reduction
• ISO 14120 for the design and construction of guards
• ISO 14119 for interlocking devices associated with guards
• ISO 13857 for safety distances to prevent hazard zones being reached
• ISO 13855 where protective-device positioning depends on approach speed and stopping time
• ISO 14118 for prevention of unexpected start-up

In Australia, the AS 4024 Safety of Machinery series addresses machinery safety topics including guarding, risk assessment, safety distances and safety-related control systems.

Conclusion

Designing modular guarding around conveyors and transfer openings requires a balance between safe material flow and controlled access to hazardous movement.

The key design considerations are the actual location of conveyor hazards, the size and use of transfer openings, safety distances, reach paths, maintenance access and the integration of gates and safety controls. Modular panels can support an efficient and adaptable layout, but they must be arranged around the machine risk rather than standard panel dimensions.

If you are planning conveyor guarding, pallet transfer protection or an automated material-handling upgrade, review the conveyor layout, hazard points, transfer requirements and access tasks before finalizing the perimeter. A competent guarding supplier or machinery safety specialist can help develop a suitable modular guarding arrangement.

Frequently Asked Questions

What parts of a conveyor usually need guarding?

Common areas include head and tail pulleys, drives, belts, chains, couplings, sprockets, rollers, transfer points, take-up systems and accessible underside components.

Can a conveyor transfer opening create a safety risk?

Yes. Transfer openings can create reach-through, reach-around or whole-body access paths if the opening size, hazard position and safety distance are not assessed together.

Can modular guarding be used around conveyor systems?

Yes. Modular machine guarding is commonly used around conveyor lines, pallet transfer systems and automated material-handling equipment. It still needs to account for hazards, access points, transfer openings and safety distances.

Should conveyor maintenance gates be interlocked?

Where opening a gate could expose a person to hazardous conveyor movement, an interlocked gate is commonly used. The final safeguarding approach depends on the risk assessment, stopping performance and access requirements.

Does a pull-wire emergency stop replace conveyor guarding?

No. Pull-wire emergency stop devices are complementary protective measures. They do not prevent access to conveyor nip points, drives, rollers or other hazardous moving parts.

How should pallet-entry openings be guarded?

Pallet-entry openings should allow the pallet to move through while preventing people from reaching or entering the hazardous area. The opening dimensions, nearest hazard and possible access path need to be assessed together.

Can conveyor guarding be changed when a line is extended?

Often, yes, particularly with modular guarding. However, extensions, new openings or relocated gates should be reviewed to confirm that hazard coverage, safety distances and access control remain suitable.
