Modular Guarding for AGV and AMR Automation Areas

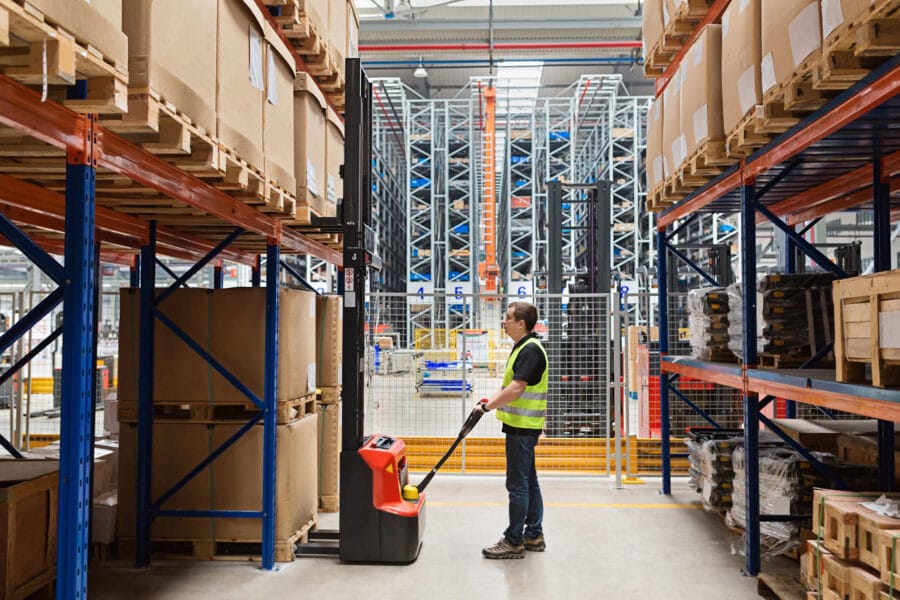

Automated guided vehicles (AGVs) and autonomous mobile robots (AMRs) move pallets, products and materials through warehouses, manufacturing plants and distribution facilities. An AGV typically follows a defined route or guidance method, while an AMR uses onboard sensors and navigation software to travel more dynamically within its operating area.

Modular guarding for AGV and AMR automation areas is used mainly to protect people from hazardous fixed machinery connected to these workflows, such as robotic cells, conveyors, palletizers, stretch wrappers and transfer equipment. It can create defined machine perimeters, controlled access points and protected pallet-transfer interfaces while allowing vehicles, pallets and materials to move through the process in a controlled way.

The key issue is not simply placing fencing beside an AGV or AMR route. The layout must control access to hazardous machine functions, prevent reach-under and reach-around hazards, protect guarding from vehicle impact and support safe access for maintenance, cleaning and fault recovery.

AGVs, AMRs and Machine Guarding

Automated guided vehicles and autonomous mobile robots may move through warehouses, manufacturing plants and distribution facilities with limited direct operator involvement.

An automated guided vehicle (AGV) commonly follows a defined or managed route using guidance or navigation technology. An autonomous mobile robot (AMR) typically uses onboard sensing and navigation systems to move more dynamically within its operating environment. In practice, the safety approach should be based on the specific vehicle, route, operating mode and interaction with people and machinery.

Both types of mobile automation can interact with:

• pallet conveyors
• robotic cells
• palletizers and depalletizers
• stretch wrappers
• packaging equipment
• automated storage systems
• loading and unloading stations
• pedestrian walkways
• forklift and pallet-jack routes

Machine guarding is generally most relevant at the interface between the mobile automation system and a fixed hazardous machine area. An AGV or AMR may deliver a pallet to a guarded palletizer, collect a load from a conveyor or approach a robotic loading station. The guarding arrangement needs to protect people from the machine hazards while allowing the vehicle and load-transfer process to function.

Start With the Complete Traffic and Process Flow

Before selecting modular panels, gates or transfer openings, map the movement of people, vehicles, pallets and equipment.

Review:

• AGV and AMR operating routes
• vehicle stopping, waiting and charging areas
• pallet pickup and drop-off locations
• pallet dimensions, load height and overhang
• conveyor infeed and discharge points
• robotic loading and unloading areas
• pedestrian crossings and walkways
• forklift and pallet-jack traffic
• maintenance and cleaning access
• fault-recovery and pallet-jam locations
• access to emergency stops, isolation points and control stations

The guarding layout should make the intended route practical while preventing uncontrolled access to hazardous areas. If people need to cross an AGV route, enter a robot cell through a pallet opening or reach beneath panels to retrieve product, the design needs further review.

Use Modular Guarding Around Fixed Machine Hazards

Modular machine guarding is well suited to fixed equipment that forms part of an AGV or AMR process.

Typical applications include:

• perimeter guarding around robotic palletizing cells
• fencing around pallet conveyors and automated transfer equipment
• interlocked gates for maintenance entry
• controlled pallet-entry and pallet-exit openings
• infill panels around conveyors, columns and services
• barriers protecting hazardous loading or unloading zones
• physical separation between pedestrians and fixed automation

Modular panels, posts and gates can be configured around the machine footprint and adjusted where the process changes. This can be useful where new pallet stations, conveyors or robot cells are added to an existing site.

However, modular guarding should not be used as a substitute for risk assessment. Standard panel widths, gate sizes and floor clearances must not create uncontrolled gaps or access paths to hazardous movement.

Assess Reach-Under Hazards at Low-Level Interfaces

Reach-under access is a critical issue in AGV and AMR automation areas.

Low-level openings may be required beneath or through guarding to allow pallet movement, vehicle interfaces or conveyor transfers. These openings can also create a path for a person to reach an arm or leg into a hazardous area. Where the opening dimensions permit, the same interface may also allow crawl-under, step-through or whole-body entry.

Common reach-under locations include:

• gaps below modular guard panels beside vehicle routes
• pallet-entry and pallet-exit openings
• spaces beneath raised conveyors
• openings below transfer equipment
• gaps at floor level caused by slopes, pits or drainage channels
• guard ends beside pallet stations
• interfaces between guarding and existing machine structures

A clearance suitable for an AGV, pallet or load carrier may not be suitable if it allows a person to reach a conveyor nip point, robot cell, palletizer or transfer hazard.

The opening dimensions, guard-to-hazard distance and possible human access path must be assessed together. Do not set floor clearance only around vehicle movement requirements.

Design Pallet Transfer Openings Carefully

Pallet transfer points are often the most complex part of an AGV or AMR guarding layout.

The opening must allow the intended pallet or load carrier to pass through while preventing people from reaching or entering the hazardous area.

Assess:

• pallet and load dimensions
• load overhang and stability
• travel direction and speed
• AGV or AMR approach path
• nearest machine hazard
• possible reach-through, reach-around and reach-under paths
• access from nearby pedestrian routes
• likely pallet jams or misalignment
• safe methods for recovery and maintenance

Oversized openings can create avoidable access risk. If a standard modular panel arrangement leaves a large gap around a pallet conveyor or transfer point, consider shaped infill panels, tunnel guarding, close-fitting local guards or a revised transfer layout.

Where loading access relies on protective devices such as light curtains or safety-rated laser scanners, the protective field, stopping performance, reset arrangement and access from other directions need to be assessed as part of the complete safety function.

Separate Vehicle Routes From Guarding

AGVs, AMRs, forklifts and moving pallet loads can damage guarding where routes are too close to posts, gates or interlock devices.

Consider:

• route clearance from guard panels and posts
• pallet overhang and load movement
• turning radius and route accuracy
• vehicle stopping zones
• blind corners and crossing visibility
• protection of gate posts and interlocks
• space for manual pallet handling
• impact exposure at transfer points and corners

Where vehicle or pallet impact is foreseeable, suitable traffic separation, purpose-designed impact protection, bollards or revised routes may be needed. The guarding system should not be assumed to provide vehicle-impact protection unless it has been designed and verified for that exposure.

Guarding should be inspected after any impact that could affect hazard coverage, structural integrity, safety distance, gate alignment or interlock operation.

A damaged post or gate can create more than a cosmetic issue. It may introduce a reach-around gap, reduce safety distance or stop an interlocked access gate from functioning correctly.

Provide Controlled Personnel Access

Personnel may need access to automated areas for cleaning, fault recovery, maintenance, inspection or component replacement.

The access method should be planned around the actual task. Options may include:

• fixed panels where access is rare
• tool-removable guard sections for planned maintenance
• interlocked hinged or sliding gates
• controlled maintenance access routes
• trapped-key or controlled-access arrangements
• internal escape or release provisions where whole-body entry is possible

Where opening a gate could expose personnel to hazardous machine functions, an interlocked movable guard is commonly used as part of the wider machine safety system.

If a person could reach the danger zone before hazardous movement or another machine-related risk has ceased, guard locking, increased separation distance or another suitable protective measure may be required. The decision should consider the relationship between stopping time and access time.

Do Not Treat Mobile Automation Safety as a Fencing Problem

Modular guarding is effective around fixed hazardous machinery, but it may not be suitable along every AGV or AMR route.

Mobile automation operating in shared areas may also require:

• defined pedestrian and vehicle routes
• controlled crossings
• visibility and warning measures
• speed management
• vehicle detection or collision-avoidance functions
• traffic-management procedures
• operating rules for manual vehicles and pedestrians

These measures do not replace machine guarding where people could access hazardous functions inside a robotic cell, palletizer, conveyor zone or other automated machine enclosure.

The safeguards for the mobile vehicle and the safeguards for fixed machinery should be coordinated, but they should not be treated as the same control.

Common Modular Guarding Mistakes in AGV and AMR Areas

Common mistakes include:

• setting panel floor clearance only for pallet or vehicle movement
• creating low-level openings that allow reach-under access
• placing posts within pallet overhang or vehicle-impact zones
• leaving oversized pallet-transfer openings
• using standard panels without reviewing gaps at machine interfaces
• locating access gates too far from maintenance or fault points
• failing to protect interlocks from impact
• relying on vehicle detection instead of guarding fixed machine hazards
• adding AGV or AMR routes after the guarding layout is complete
• changing pallet dimensions without reviewing transfer openings

A guarding layout that works for the vehicle but allows people to access hazardous movement is not an effective safeguarding solution.

Relevant Standards and Technical Considerations

AGV and AMR automation areas should be assessed through a documented risk assessment and relevant local requirements.

Common international standards that may be relevant, depending on the vehicle type, fixed machinery and safeguarding method, include:

• ISO 12100 for machinery risk assessment and risk reduction
• ISO 14120 for the design and construction of fixed and movable guards
• ISO 14119 for interlocking devices associated with guards
• ISO 13857 for safety distances
• ISO 13855 where protective-device positioning depends on approach speed and stopping time
• ISO 13849-1 for safety-related parts of control systems
• ISO 3691-4 for driverless industrial trucks and their systems, where applicable

In Australia, the AS 4024 Safety of Machinery series addresses machinery safety topics including guarding, safety distances, interlocking and safety-related control systems. Local workplace, mobile-robot and industry-specific requirements should also be reviewed for the installation location.

Conclusion

Modular guarding for AGV and AMR automation areas should protect people from hazardous fixed machinery while allowing vehicles, pallets and materials to move through the process safely.

The key design issues are reach-under access, pallet-transfer openings, vehicle impact, controlled personnel entry and the interface between mobile automation and guarded machine zones. Modular panels and gates can provide a flexible solution, but the layout must be based on the real machine hazards, access requirements and traffic flow.

If you are planning an AGV or AMR project around robotic cells, conveyors, palletizers or transfer equipment, review the vehicle routes, pallet dimensions, pedestrian movement and machine hazards before finalizing the guarding layout.

Frequently Asked Questions

Can modular guarding be used around AGV and AMR systems?

Yes. Modular guarding is commonly used around fixed equipment connected to AGV and AMR workflows, such as robotic cells, palletizers, conveyors and transfer stations. It is generally not a substitute for wider traffic-management controls along open vehicle routes.

Why is reach-under access important in AGV areas?

Pallet transfer points and vehicle interfaces may create low-level openings beneath or through guarding. If these openings are not designed correctly, people may be able to reach, crawl or step into a hazardous machine area.

How should pallet openings be designed in AGV areas?

Pallet openings should allow the intended load to pass while preventing people from reaching or entering the hazardous area. Assess pallet dimensions, load overhang, hazard location, possible reach paths and foreseeable jam-clearing tasks.

Do AGV and AMR areas need interlocked access gates?

Where personnel access through guarding could expose people to hazardous machine functions, an interlocked movable guard is commonly used. The required arrangement depends on the risk assessment, access requirements and machine stopping performance.

Does AGV collision avoidance replace machine guarding?

No. Collision-avoidance or detection functions may help manage vehicle-related risk, but they do not replace machine guarding around robot movement, conveyor drives, palletizers or other hazardous machine functions.

How can guarding be protected from AGV impact?

Use appropriate clearance between vehicle routes and guarding, consider bollards or impact barriers around vulnerable posts and devices, and inspect guarding after impacts that may affect its protective function.

Can modular guarding be changed after an AGV route is installed?

Often, yes. However, a new route, pallet size, transfer opening or gate location can change reach paths, impact exposure and access control. Review the safeguarding layout before making the change.
