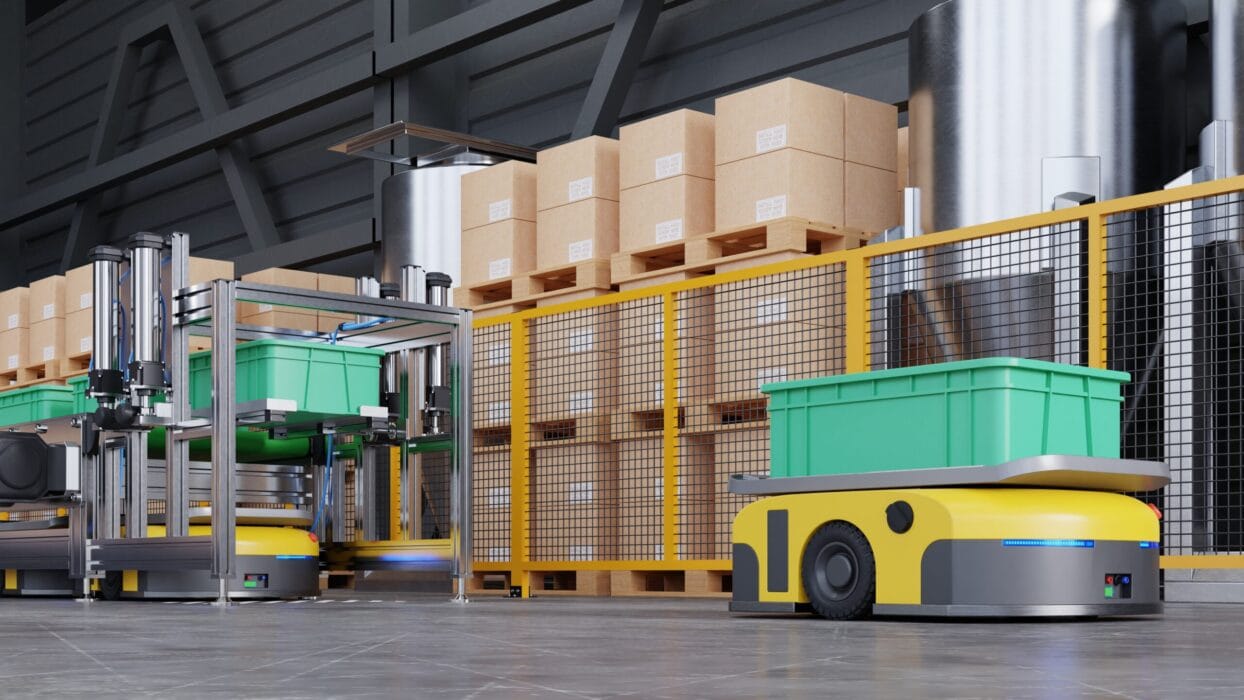

Designing modular guarding in an AGV operating environment requires more than placing fencing around automated equipment. The layout must control access to hazardous machinery while allowing automated guided vehicles, pallets, products and authorized personnel to move through the area safely.

A key issue is reach-under access. AGV routes, pallet transfer points and low-clearance conveyor interfaces can create gaps beneath guarding that allow a person to reach, crawl or step into a hazardous area. These gaps may be overlooked when the design focuses only on panel height and vehicle clearance.

Modular machine guarding can provide a practical solution around robotic cells, conveyors, palletizers and automated transfer equipment. However, the guard perimeter, floor clearance, transfer openings and vehicle routes must be designed around the actual hazards and foreseeable access paths.

Why AGV Environments Need a Different Guarding Approach

AGVs and other mobile automation systems can move through production and warehouse areas without direct operator control. They may transport pallets between conveyors, storage locations, robotic cells and packing stations.

The challenge is that the same area may include:

• AGV routes
• pedestrian walkways
• forklift traffic
• pallet transfer points
• conveyor openings
• robotic or automated cells
• operator loading stations
• maintenance access routes

A modular guard layout that works around a fixed machine may not work where AGVs need to pass close to the enclosure or transfer materials through low-level openings.

The design must consider both sides of the barrier:

• preventing people from entering hazardous machine areas
• preventing vehicles, pallets or loads from damaging guarding and safety devices

Identify Hazards and Access Paths First

Start with a risk assessment of the complete operating area, not only the guarded machine.

Identify:

• robot movement and operating envelope
• conveyor drives, pulleys, rollers and transfer points
• palletizer, stretch wrapper or automated handling hazards
• AGV travel paths and stopping zones
• pallet pickup and drop-off locations
• pedestrian crossing points
• likely fault-recovery and jam-clearing tasks
• vehicle impact exposure
• spaces beneath panels, conveyors and transfer openings

The layout should consider how a person could approach the danger zone during normal operation, fault recovery, cleaning, maintenance or foreseeable shortcuts.

An AGV or pallet-transfer interface may require a low-level opening beneath or through guarding to allow material or vehicle movement. That opening must also be assessed as a potential reach-under, crawl-under or step-through access path.

Control Reach-Under Hazards

Reach-under hazards occur where a person can reach part of their body beneath a panel, fence or barrier and access a machine danger zone. Where the opening is larger, the same interface may also create crawl-under, step-through or whole-body entry risk.

In AGV environments, common reach-under locations include:

• gaps below modular guard panels beside AGV routes
• openings below conveyors or pallet-transfer equipment
• spaces beneath raised machinery frames
• low-level pallet-entry openings
• guard ends beside vehicle travel paths
• gaps created by uneven floors, pits or drainage channels
• interfaces between guarding and existing structures

An AGV or pallet-transfer interface may require a low-level opening beneath or through guarding to allow material or vehicle movement. That opening must also be assessed as a potential reach-under, crawl-under or step-through access path. The design also needs to ask:

• Can a person reach an arm or leg through the opening?
• Can a person crawl beneath the guard?
• Can someone step through from a pedestrian route?
• Can a person reach a roller, conveyor drive, robot cell or transfer hazard?
• Does a nearby pallet, platform or machine frame help a person gain access?
• Does the opening provide access before hazardous movement has stopped?

Where a low-level opening is necessary, the opening dimensions, guard-to-hazard distance and possible human reach path need to be assessed together. A clearance that is suitable for an AGV, pallet or load carrier may not be suitable if it provides access to a machine danger zone.

Separate AGV Routes From Guarded Areas

AGV routes should be planned so vehicles, loads and pallet overhang do not travel unnecessarily close to guard panels, access gates or interlock devices.

Consider:

• clearance between the AGV route and guard posts
• pallet overhang and load movement
• AGV turning radius
• stopping distance and route accuracy
• location of charging stations or waiting zones
• pedestrian crossings near automated equipment
• vehicle approach to pallet transfer openings
• protection of posts and gates from collision
• visibility at blind corners

Where AGVs or pallets can strike the guarding, provide suitable separation or impact protection. A damaged post or bent panel can create a reach-under or reach-around gap, reduce safety distance or misalign an interlocked gate.

Physical perimeter guarding may not be suitable along the entire route of an AGV or AMR operating in a shared facility. Depending on the application, risk reduction may also involve segregated traffic routes, controlled crossings, detection systems, speed management and site operating procedures. These measures do not replace guarding where people could otherwise access hazardous machine functions inside an automated cell or conveyor zone.

Bollards, impact barriers or revised traffic routes may be appropriate where guard posts are exposed to foreseeable vehicle impact.

Design Pallet and Material Transfer Openings Carefully

Pallet transfer points are often the most difficult part of an AGV guarding layout. The opening must allow the pallet, load carrier or AGV interface to function while restricting human access to the hazardous area.

Assess:

• pallet dimensions and height
• pallet orientation and travel direction
• pallet overhang
• load stability
• AGV approach and departure path
• the nearest hazardous movement
• possible reach-through and reach-under paths
• whether a person could crawl, lean or step through
• how jammed or misaligned pallets will be cleared

Do not make the opening larger than necessary simply to simplify installation. Oversized openings can create uncontrolled access to conveyors, robots or pallet-handling equipment.

Depending on the process, a suitable solution may involve:

• a tunnel guard
• a reduced-height or shaped opening
• close-fitting local guards
• safety scanners or presence-sensing devices
• controlled muting arrangements
• an interlocked maintenance gate near the transfer point
• changes to the pallet-transfer design

The right solution depends on the specific hazard, stopping performance and access requirements.

Use Modular Guarding Without Letting Panel Sizes Drive the Layout

Modular machine guarding can be useful in AGV environments because it allows panels, posts and access gates to be arranged around automated cells and later adjusted as the facility changes.

However, standard components must not drive unsafe decisions.

Pay particular attention to:

• floor clearance beneath standard panels
• post positions near AGV routes
• panel ends at pallet transfer openings
• access around walls, conveyors and columns
• gates near vehicle traffic
• extension panels added after line changes
• interfaces with AGV charging or service areas

Where a standard modular panel creates a gap that allows reach-under access, use a different panel configuration, infill section, close-fitting guard or other suitable design measure.

Plan Pedestrian Access and Maintenance Tasks

AGV environments often create pressure to minimize walking distances and keep production moving. If the intended access route is inconvenient, people may reach beneath panels, enter through pallet openings or bypass gates.

The guarding layout should provide practical access for:

• cleaning
• jam clearing
• maintenance
• inspection
• sensor reset
• pallet recovery
• component replacement
• emergency intervention

Where personnel need regular access to a hazardous area, a properly positioned interlocked gate may be more suitable than removable panels or uncontrolled transfer openings.

If opening the gate provides access to hazardous machine functions, the safety system must provide the required response. Where a person could reach the danger zone before hazardous movement has stopped, guard locking or another suitable protective measure may be required.

Coordinate Guarding With AGV and Machine Safety Controls

Physical guarding should be coordinated with the wider automation and safety-control design.

This may include:

• interlocked access gates
• guard locking
• safety-rated machine controls
• reset and restart prevention
• emergency stop devices
• safety scanners at controlled crossings
• AGV detection or collision-avoidance functions
• route controls and traffic separation
• muting functions at pallet-transfer points
• visibility of the hazardous area before reset

Emergency stop devices are complementary measures. They do not replace controlled access, suitable guarding or energy isolation for maintenance work.

Similarly, AGV detection or collision-avoidance features do not automatically protect a person from the hazards inside a guarded machine cell.

Common Design Mistakes

Common mistakes in AGV operating environments include:

• setting panel floor clearance only for vehicle movement
• allowing reach-under access below fencing
• placing guard posts within pallet overhang or AGV impact zones
• creating oversized pallet-transfer openings
• failing to account for jam-clearing access
• relying on emergency stops instead of physical separation
• installing gates too far from likely maintenance or fault points
• failing to protect interlocks from vehicle impact
• adding AGV routes after the guarding layout is complete
• modifying openings without reviewing safety distances

A guarding layout that works for the AGV but allows people to enter the danger zone is not an effective safeguarding solution.

Conclusion

Designing modular guarding in an AGV operating environment requires careful control of vehicle routes, pallet transfers, pedestrian access and reach-under hazards.

The key design issue is not simply allowing AGVs to move efficiently. It is making sure that low-level openings, panel clearances and transfer interfaces do not provide people with access to hazardous machine movement.

Modular guarding can support flexible AGV and automation layouts, but every panel, opening, gate and interface must be assessed against the actual machine hazards, required safety distances and foreseeable access tasks.

If you are planning guarding around AGV routes, pallet transfer stations or automated cells, review the AGV movement, pallet dimensions, pedestrian routes and reach-under risks before finalizing the layout.

Frequently Asked Questions

Why is reach-under access important in AGV guarding?

AGV routes and pallet-transfer points can require low-level openings beneath or through guarding. If those openings are not correctly designed, a person may be able to reach, crawl or step into a hazardous machine area.

Can modular machine guarding be used around AGV routes?

Yes. Modular guarding can be configured around automated cells, pallet transfer systems and AGV interfaces. The layout must still account for vehicle clearance, pallet movement, pedestrian access, impact exposure and safety distances.

How should guarding be protected from AGV impact?

Use appropriate route separation, sufficient vehicle clearance and, where needed, bollards or impact barriers around vulnerable posts, gates and safety devices. Inspect guarding after impacts that may affect its protective function.

Can an AGV transfer opening be used for pedestrian access?

It should not be treated as a personnel access route unless it has been specifically designed and safeguarded for that purpose. Transfer openings should be assessed for reach-through, reach-under and whole-body access.

Do AGV areas need interlocked gates?

Interlocked gates are commonly used where personnel access through guarding could expose someone to hazardous machine functions. The required safeguarding arrangement depends on the risk assessment, stopping performance and access requirements.

Does AGV collision avoidance replace machine guarding?

No. AGV collision-avoidance or detection systems may reduce vehicle-related risk, but they do not replace machine guarding around conveyor drives, robots, palletizers or other hazardous equipment.
