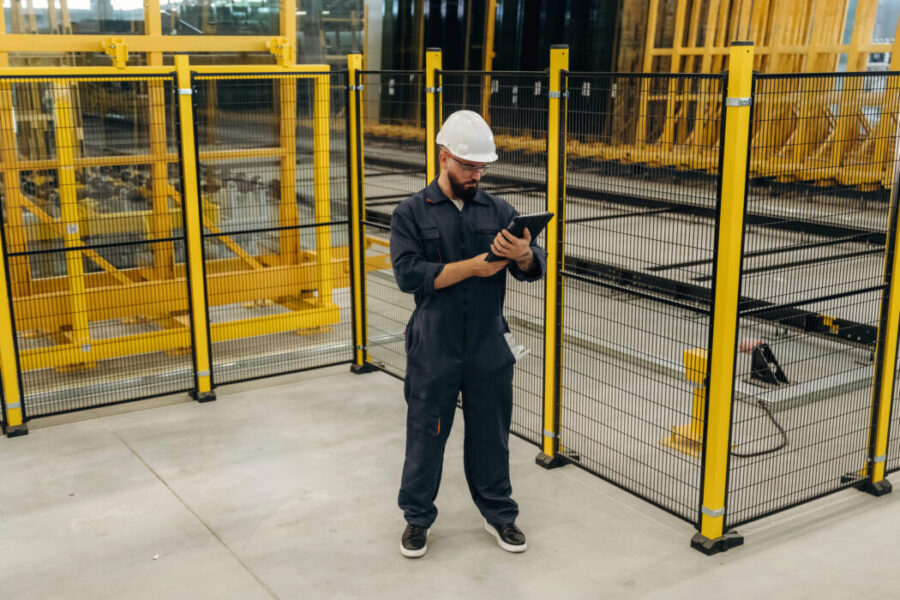

A modular machine guarding layout should be designed around the machine hazards, required safety distances and access tasks, not around the available panel sizes.

Modular panels, posts and access gates can provide a practical way to enclose machinery, define restricted areas and accommodate future changes. However, a layout is only effective if it prevents or adequately restricts access to the actual danger zones during operation, cleaning, maintenance, setup and fault recovery.

The design process should begin with a machine risk assessment, then translate the identified controls into a workable guarding perimeter, access strategy and control-system scope. This reflects the risk-reduction sequence in ISO 12100: determine the limits of the machinery, identify hazards, estimate and evaluate risk, then eliminate or reduce risk through protective measures.

Start With the Hazard, Not the Panel Grid

A modular machine guarding layout is often based on standardized panel widths, post centers and gate modules. These components can improve consistency and make future expansion easier, but they should not determine the safeguarding concept.

First identify:

• hazardous moving parts and danger zones
• the machine operating envelope
• potential ejection or falling of product, tooling, process material or other objects
• access required during normal production
• maintenance, cleaning and jam-clearing tasks
• foreseeable misuse or unsafe workarounds
• interfaces with conveyors, robots, loading stations and adjacent equipment

The guard perimeter should then be positioned to control those hazards. Do not place a fence as close as possible to the machine simply to minimize its footprint. A panel that appears to enclose the equipment may still allow reach-through, reach-under, reach-over or reach-around access.

Establish Safety Distances and Guard Openings

Safety distance is one of the main design inputs for a modular machine guarding layout. The required separation depends on the hazard location, opening size, possible reach direction and, where relevant, the time required for hazardous movement to stop.

Assess:

• mesh aperture or opening size
• distance from the panel to the actual hazard
• floor clearance below the panel
• gaps at corners, posts and machine interfaces
• openings around conveyors, chutes and services
• guard height and the possibility of reaching over
• nearby platforms, pallets or structures that could provide a climbing point

The guarding system should maintain the intended safety distance under foreseeable operating conditions, including expected barrier deflection. The attached AS 4024 guidance notes that the designed or foreseeable deflection of fixed or movable barriers needs to be considered when establishing safety distances.

Standard panel dimensions can be useful for planning, but they do not replace this assessment. Where a standard section creates an unsuitable gap or positions the panel too close to the hazard, the layout should be changed or a purpose-designed section introduced.

Define the Guard Perimeter

Once hazards and safety distances are understood, establish the overall perimeter.

A good perimeter layout should:

• enclose all hazardous movement within the defined area
• maintain the required clearance from danger zones
• avoid uncontrolled gaps at walls, columns and machine frames
• account for product infeed and discharge points
• avoid obstructing required pedestrian routes, emergency exits or emergency access arrangements
• avoid creating new trapping, impact or pinch hazards
• allow practical visibility of the process where needed

For robot cells, palletizers and automated systems, include the maximum operating space of the equipment, the workpiece, end effector and any possible load release. For conveyors, assess drive units, pulleys, return rollers, transfer points and accessible underside areas—not just the side of the belt.

A modular perimeter can be expanded or reconfigured later, but the initial layout still needs to work safely in its current configuration. Where the enclosure forms part of a larger production line or automated cell, the layout should also consider safety interactions with connected machinery, shared controls and transfer interfaces.

Plan Access Before Selecting Gates

Access arrangements often determine whether guarding remains effective in daily use. If a gate is inconveniently located, too narrow for the task or difficult to operate, personnel may remove panels, bypass interlocks or create informal access routes.

Identify every access task, including:

• routine operator access
• loading and unloading
• product changeovers
• jam clearing
• cleaning
• lubrication and inspection
• tool changes
• maintenance and component removal
• emergency access

Where access is infrequent, fixed guards designed to resist easy removal and requiring the intended tools for removal may be appropriate. Where access is required regularly, a hinged or sliding gate may be more practical. If opening the gate provides access to hazardous movement, the gate may need interlocking as part of the machine safety system.

In the Australian and New Zealand context, AS 4024 guidance describes a guarding hierarchy that considers permanently fixed guards first, followed by interlocked guards, then guards requiring a tool for removal and, after physical guarding has been considered, presence-sensing systems. The right selection still depends on the specific risk assessment, machine application and local requirements.

Integrate Interlocks and Safety Controls

A modular gate is not automatically a safe access point because it has an interlock switch fitted to it.

The complete safety function may need to address:

• the required safe response when access is opened
• machine stopping performance
• whether guard locking is needed
• prevention of unexpected restart
• reset location and visibility
• resistance to foreseeable bypassing
• electrical installation and fault handling
• validation of the completed safety function

Where a person could reach the danger zone before hazardous movement has stopped, simply opening an interlocked gate may not provide adequate protection. Greater separation, guard locking or another suitable protective measure may be required, based on the risk assessment and the relationship between stopping time and access time.

Define early who is responsible for the mechanical guarding, interlock hardware, electrical installation, programming and validation. Unclear scope boundaries are a common cause of late project changes.

Account for Site Conditions and Future Changes

A modular machine guarding layout should reflect actual site conditions, not only a preliminary drawing.

Confirm:

• slab condition and anchor locations
• floor levels, pits and steps
• columns, walls and overhead services
• cable trays, pipework and utility connections
• forklift routes and impact exposure
• washdown, corrosion, dust or heat
• available installation access
• shutdown windows and production constraints

Also consider likely future changes. Modular machine guarding can support phased line expansion, altered access points or replacement of damaged sections. However, every modification should be reviewed against the hazard layout. A new conveyor, wider product opening or relocated gate can introduce a reach path that did not exist in the original design.

Commission the Completed Layout

Before returning the machine to service, verify that the installed system matches the approved design.

Check:

• panel, post and gate positions
• controlled gaps and safety distances
• anchor and fixing integrity
• gate alignment and latching
• interlock operation and guard locking, where used
• stop and restart behavior
• access for planned maintenance tasks
• emergency-stop access
• final drawings and safety documentation

Commissioning should include normal operation, gate opening, attempted restart and foreseeable misuse scenarios. The goal is to confirm that the modular machine guarding layout works as a complete safeguarding system, not merely that every panel has been installed.

Conclusion

A modular machine guarding layout should be designed from the hazard outward. The key design decisions are the danger-zone location, safety distance, perimeter position, access requirements, gate strategy and integration with the machine safety system.

Modular panels and gates can make installation, future expansion and replacement work more manageable. They do not remove the need for a machine-specific risk assessment, suitable safety distances or proper control-system design.

If you are planning a new enclosure, retrofit or automated-cell upgrade, start with the machine layout, hazard information, access requirements and available site dimensions. A competent guarding supplier or machinery safety specialist can then help develop a modular layout suited to the application.

Frequently Asked Questions

What is a modular machine guarding layout?

A modular machine guarding layout is a guarding perimeter designed using standardized panels, posts, gates and fixings arranged around machinery to control access to hazardous areas.

Should panel size determine the guarding layout?

No. Panel sizes should be selected after the hazards, safety distances, access requirements and machine interfaces have been assessed.

How close can modular guarding be placed to a machine?

There is no universal distance. The correct position depends on the opening size, hazard location, possible reach direction and applicable safety-distance principles.

Can modular guarding include interlocked access gates?

Yes. Modular systems can include hinged or sliding access gates with interlocking devices. The interlock function must be designed as part of the wider machine safety system.

When is guard locking needed?

Guard locking may be needed where hazardous movement does not stop before a person could reach the danger zone after opening an interlocked gate. The decision depends on stopping time, access time and risk assessment.

Can modular machine guarding be extended later?

Often, yes. Modular systems can support future extensions or reconfiguration, but any change should be reviewed to confirm that it does not create new access paths or reduce safety distances.

What information is needed to design a modular guarding layout?

Useful information includes machine drawings, photographs, hazard locations, operating sequence, access requirements, stopping information, site dimensions, transfer openings, floor conditions and the scope of mechanical and control-system work.
