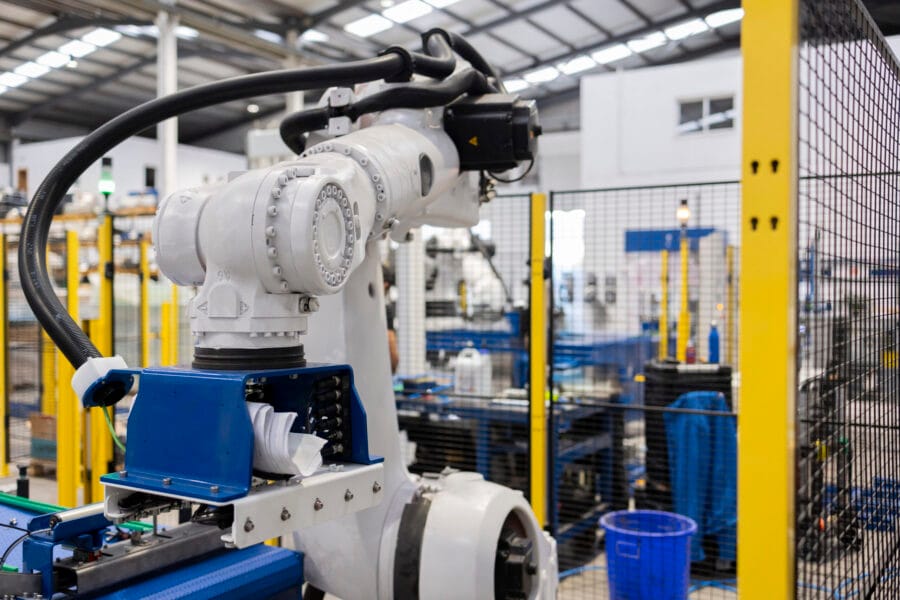

Modular Machine Guarding for Robotic Cells

Modular machine guarding is widely used for robotic cells because it provides a practical way to create perimeter enclosures, controlled access points and defined loading areas around automated equipment.

A robotic cell may include more than the robot arm itself. The guarded area can also contain end effectors, tooling, conveyors, palletizers, fixtures, workpieces, safety devices and other machinery. The guarding layout must control access to the complete hazardous area while allowing safe operation, material flow, maintenance and fault recovery.

Modular panels, posts and access gates can make robotic cell guarding easier to configure, install and extend. However, a modular system is not automatically safe because it fits around the robot. The final layout must be based on the robot operating space, stopping performance, safety distances, access requirements and the complete machine safety design.

Why Robotic Cells Need Perimeter Guarding

Industrial robots can move quickly, change direction during an automatic cycle and create hazards beyond the physical reach of the robot arm.

Potential hazards may include:

• crushing between the robot and fixed equipment
• impact from robot or end-effector movement
• trapping between moving machinery and the cell perimeter
• ejection or dropping of workpieces, tooling or process material
• hazards from associated conveyors, palletizers or fixtures
• unexpected restart after access
• access during fault recovery, cleaning or maintenance
• contact with pneumatic, hydraulic, electrical or process-related hazards inside the cell

The complete hazardous area should include the robot’s maximum operating space, the movement of the end effector, carried loads, tooling, workpiece movement and any connected machinery.

A fence positioned only around the robot base may leave people exposed to moving loads, outfeed conveyors, tool-change areas or pallet transfer equipment.

How Modular Robotic Cell Guarding Works

A modular robotic cell enclosure is built using repeatable components that can be arranged around the required perimeter.

Typical components may include:

• mesh or solid guard panels
• support posts and base plates
• hinged or sliding access gates
• interlock mounting provisions
• removable maintenance sections
• controlled openings for product flow
• brackets, joining hardware and infill sections
• impact protection around vulnerable posts or gates

This format is particularly useful for robotic cells because layouts often include straight perimeter runs, multiple access points, conveyor interfaces and future expansion requirements.

For example, a modular enclosure may use fixed mesh panels around the rear and sides of a robot cell, interlocked personnel gates for maintenance access and controlled openings at conveyor infeed or discharge points.

Start With the Robot Cell Risk Assessment

Guarding should be selected after the complete robot application has been assessed.

The risk review should consider:

• robot type, reach and maximum operating envelope
• robot speed, payload and stopping characteristics
• end effector, tooling and gripper hazards
• workpiece size, weight and possible load release
• fixtures, turntables, conveyors and pallet systems
• operating modes, including setup and manual intervention
• access required for operators, maintenance personnel and cleaners
• foreseeable jams, faults and recovery tasks
• full-body entry into the guarded area
• potential reach-through, reach-around, reach-over and reach-under paths
• the effect of surrounding pedestrian and vehicle traffic

Collaborative operation should also be assessed carefully. A collaborative robot does not automatically remove the need for guarding. The complete application must be considered, including tooling, payload, speed, adjacent machinery, possible contact and the task being performed.

Set the Guard Perimeter Around the Complete Hazard Zone

The guard perimeter must be positioned so people cannot reach or enter the danger zone during hazardous operation.

Key considerations include:

• the robot’s maximum operating space
• movement of the end effector and carried workpiece
• stopping performance where access is controlled by interlocked gates or protective devices
• ejection or dropping of tooling and product
• the location of conveyors and material-transfer points
• safety distances from mesh openings to hazards
• guard height and reach-over access
• floor clearance and reach-under access
• gaps at walls, columns and machine interfaces
• nearby pallets, platforms or structures that could create climbing access

The position of the robot fence should not be determined by the nearest convenient panel line. A modular machine guarding layout must follow the actual hazard and required separation distance.

Where standard panel widths create an uncontrolled opening or place guarding too close to the hazard, use an infill section, adjust the post layout or change the perimeter design.

Plan Material Flow and Loading Openings

Robotic cells commonly need openings for pallets, components, totes, conveyors or other material flow.

These openings are often necessary, but they can also create access paths to hazardous movement.

Assess:

• size and shape of the load
• infeed and discharge direction
• load speed and possible accumulation
• nearest robot, conveyor or tooling hazard
• possible reach-through or reach-around access
• whether a person could crawl, step or lean through the opening
• likely jam-clearing or fault-recovery tasks
• access from nearby pedestrian or vehicle routes

A loading opening designed for a pallet, tote or conveyed product may also allow human access if the opening size, possible reach path, hazard position and safety distance are not considered together.

Depending on the application, suitable controls may include tunnel guarding, reduced openings, fixed barriers, safety-rated protective devices, controlled muting arrangements or a different material-transfer arrangement.

Use Interlocked Access Gates Where Required

Personnel access gates are a critical part of robotic cell guarding. A gate should be positioned near the actual maintenance, cleaning or fault-recovery task, not simply where there is spare space in the perimeter.

Where opening a gate could expose a person to hazardous robot movement or associated machine functions, an interlocked movable guard is commonly used as part of the machine safety system.

The safety function may need to address:

• the required response when the gate is opened
• prevention of hazardous start or restart while access is open
• robot stopping performance
• reset location and visibility
• prevention of unexpected restart
• resistance to foreseeable defeat
• interlock mounting and cable protection
• guard locking where needed

If a person could reach the danger zone before hazardous movement or another machine-related risk has ceased, guard locking or another suitable protective measure may be required. This depends on the risk assessment and the relationship between stopping time and access time.

Where full-body entry is possible, the cell design should also address the risk of someone being trapped inside. Depending on the application, this may require internal escape release, alternative exit arrangements, presence detection or controlled restart procedures.

Benefits of Modular Guarding for Robotic Cells

Modular robotic cell guarding can offer practical benefits where the system is correctly designed.

Layout flexibility

Robotic cells are often modified as products, tooling, conveyors or pallet-handling methods change. Modular panels and posts can make it easier to extend the enclosure, relocate a gate or alter a perimeter section.

Consistent site-wide design

Facilities with multiple robotic cells can standardize panel types, guard heights, gates, fixings and spare components across the site.

Easier retrofit and expansion work

Modular guarding can be particularly useful around existing automation, where a new robot, conveyor or pallet station is being added to an established production line.

Replacement of damaged sections

Where a panel is damaged by forklifts, pallets or maintenance activity, a standardized replacement section may be easier to source and install than a fully custom guard.

These benefits do not remove the need to review each change. A new panel, transfer opening or relocated gate can alter access paths and safety distances.

Common Robotic Cell Guarding Mistakes

Common issues include:

• guarding the robot arm but not the workpiece, end effector or connected equipment
• placing fencing too close to the robot operating space
• ignoring the possibility of ejected tooling or dropped loads
• leaving uncontrolled gaps around conveyors and transfer points
• positioning gates far from likely fault-recovery tasks
• using an interlock without reviewing stopping performance
• failing to address whole-body entry and restart prevention
• assuming collaborative operation eliminates the need for safeguarding
• modifying the cell layout without reviewing the guarding design
• allowing vehicle traffic to damage guard posts, panels or interlocks

A robotic cell enclosure should be reviewed as a complete safeguarding system, not simply a perimeter fence.

Standards and Technical Considerations

Robotic cell guarding should be designed through a documented risk assessment and in accordance with applicable standards and local requirements.

Common international standards relevant to robotic cell safeguarding may include:

• ISO 12100 for machinery risk assessment and risk reduction
• ISO 10218-1 for industrial robot safety requirements
• ISO 10218-2 for robot applications and robot-cell integration
• ISO 14120 for the design and construction of guards
• ISO 14119 for interlocking devices associated with guards
• ISO 13857 for safety distances
• ISO 13849-1 for safety-related parts of control systems
• ISO 14118 for prevention of unexpected start-up

In Australia, the AS 4024 Safety of Machinery series addresses machinery safety topics including risk assessment, guarding, safety distances and safety-related control systems. Local regulatory requirements and industry-specific guidance should also be reviewed for the installation location.

Conclusion

Modular machine guarding for robotic cells provides a practical way to create controlled, adaptable perimeters around robots, conveyors, palletizers and associated automation.

The final layout must be based on the complete hazardous area, including robot movement, tooling, workpieces, transfer points, access tasks and stopping performance. Modular panels and gates can simplify installation and future changes, but they must not create uncontrolled gaps, poor access routes or inadequate safety distances.

If you are planning a new robotic cell, expanding an automated line or upgrading existing robot guarding, start with the robot layout, hazard information, access requirements and site conditions. A competent guarding supplier or machinery safety specialist can help develop a modular robotic cell enclosure suited to the application.

Frequently Asked Questions

Can modular machine guarding be used for robotic cells?

Yes. Modular machine guarding is widely used for robotic cells because panels, posts and access gates can be configured around the required perimeter, material-flow openings and maintenance access points.

How far should robotic cell fencing be from the robot?

There is no universal distance. The correct fence position depends on the robot operating space, end effector, workpiece, hazard location, stopping performance, mesh opening size and applicable safety-distance principles.

Do robotic cell access gates need interlocks?

Where opening the gate could expose a person to hazardous robot movement or associated machine functions, an interlocked movable guard is commonly used as part of the wider machine safety system.

Does a collaborative robot always need perimeter guarding?

Not necessarily, but collaborative operation does not automatically eliminate safeguarding requirements. The complete application must be assessed, including tooling, payload, speed, contact risk, surrounding equipment and operating modes.

Can robot cell guarding include conveyor openings?

Yes. Conveyor and pallet-transfer openings are common, but they must be designed so people cannot reach or enter the hazardous area through, under or around the opening.

When is guard locking needed on a robotic cell gate?

Guard locking may be needed where a person could reach the danger zone before robot movement or another machine-related risk has ceased after the gate is opened.

Can modular robot guarding be changed later?

Often, yes. Modular systems can support expansion or reconfiguration, but every change should be reviewed to confirm that hazard coverage, access control and safety distances remain suitable.
